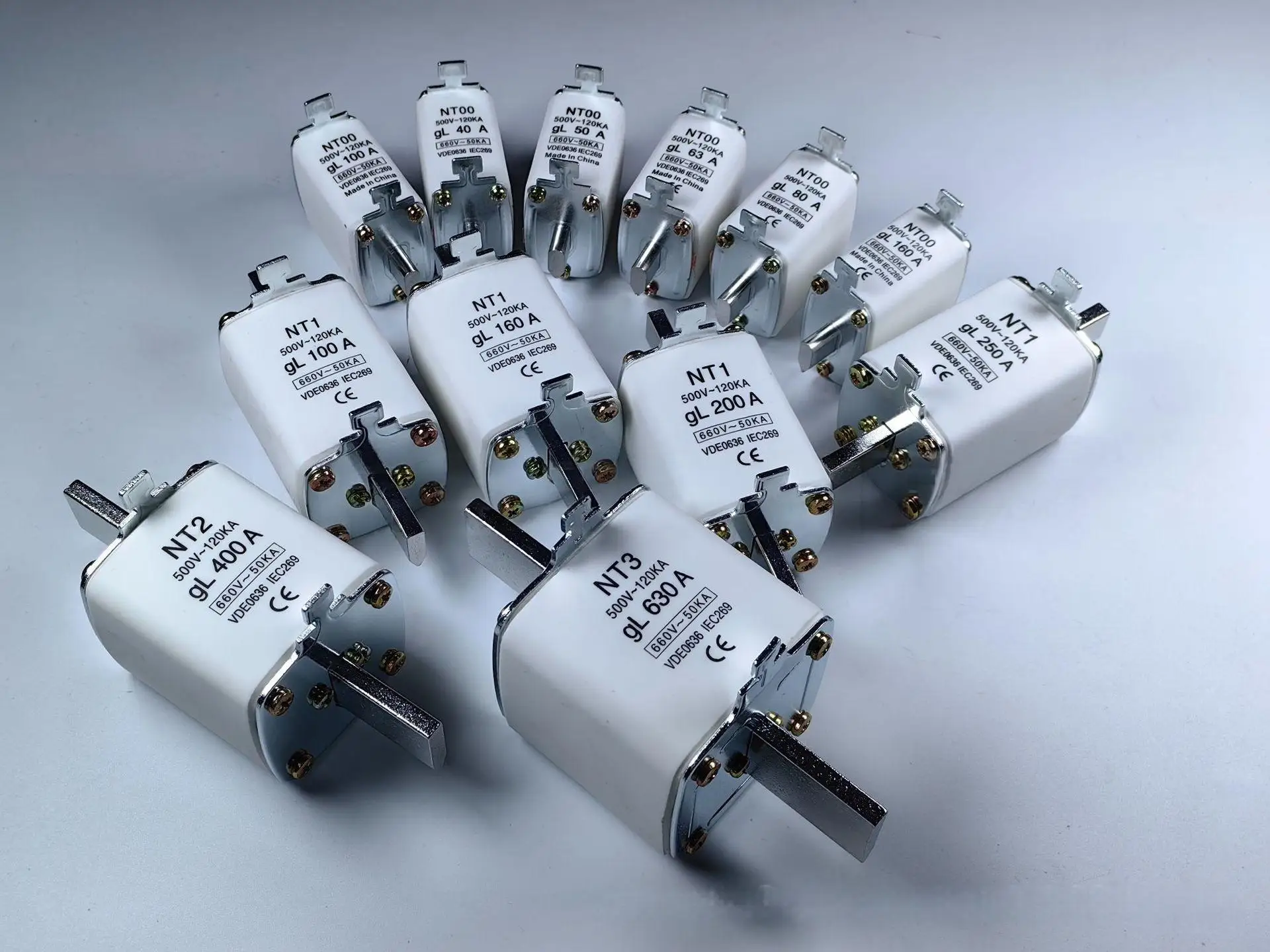

Vdc Fuse Advantages Built on Three Decades of Low-Voltage Electrical Expertise

Vdc Fuse Advantages Built on Three Decades of Low-Voltage Electrical Expertise

As a professional electrical manufacturer founded in 1992, ZHNYU ELECTRIC brings 34 years of production experience, over 100 production equipment units, and a 10,000+ square meter facility to every Vdc Fuse we deliver. Our Vdc Fuse portfolio covers 1000V DC and 1500V DC ratings from 1A to 630A, engineered for photovoltaic combiner boxes, energy storage systems, and DC power distribution, where stable circuit protection directly affects system uptime. In solar farms, technicians install these fuses in series with PV strings to interrupt fault currents and prevent thermal runaway in junction boxes. Compared with generic alternatives, our Vdc Fuse delivers a 30% longer electrical life and holds breaking capacity up to 100kA at rated voltage, verified through type tests on more than 500 sample batches annually. Deployed in over 60 export countries, including Germany, Brazil, India, and Australia.
Get A Quote

Case Study

1500V DC Vdc Fuse Solution for a 50MW Solar Plant in Chile

A Chilean EPC contractor building a 50MW photovoltaic plant faced repeated nuisance tripping and thermal stress inside combiner boxes because the original 1000V DC fuses could not handle the string voltage. ZHNYU ELECTRIC engineers recommended our 1500V DC Vdc Fuse rated 20A with a 30kA breaking capacity, matched to the string's maximum fault current. Working with the customer's installation habits, we supplied fuses with standardized blade terminals for quick clip-in replacement, cutting each box's maintenance time by 40%. After 18 months of operation across 200 combiner boxes, the plant recorded zero fuse-related outages and maintained over 99.5% inverter availability.

Vdc Fuse Upgrade for an Energy Storage System in Germany

A German energy storage integrator needed compact Vdc Fuse protection for a 1MW battery container where space inside the DC rack was limited. The previous cylindrical fuses overheated during high-current charging cycles. We delivered a 1000V DC Vdc Fuse rated 250A with low power dissipation, reducing terminal temperature rise by 15 Kelvin at full load. The integrator standardized this fuse across three container models after passing 2000-hour cycling tests. Field data showed a 25% drop in maintenance callouts within the first year, and the customer expanded the order to 12,000 units, confirming the reliability our manufacturing depth provides.

1000V DC Vdc Fuse for Railway Signaling Power in Australia

An Australian rail operator required Vdc Fuse protection for DC signaling cabinets exposed to vibration, humidity, and wide temperature swings. Off-the-shelf fuses failed prematurely, causing unscheduled track inspections. Our team supplied a 1000V DC Vdc Fuse rated 63A with reinforced ceramic bodies and silver-plated contacts, tested to 5000 mechanical cycles. Installed across 320 signaling cabinets, the fuses reduced protection-related faults by 60% over two years. The operator now specifies ZHNYU ELECTRIC Vdc Fuse in its procurement standard, citing consistent trip accuracy and stable performance from -40 to +70 degrees Celsius.

Related products

ATS Dual Power Supply Automatic Switch VIEW DETAILS

ATS Dual Power Supply Automatic Switch

ZYM1L Molded case circuit breaker VIEW DETAILS

ZYM1L Molded case circuit breaker

ZYM1 Molded case circuit breaker VIEW DETAILS

ZYM1 Molded case circuit breaker

ZYM1E Molded case circuit breaker VIEW DETAILS

ZYM1E Molded case circuit breaker

Choosing the right Vdc Fuse begins with understanding how DC fault currents behave differently from AC. In direct current circuits, arcs do not naturally extinguish at zero crossings, so a Vdc Fuse must combine a fast-melting element with an arc-quenching filler to safely interrupt faults. At ZHNYU ELECTRIC, this principle guides every stage of production, from element design to final inspection. Founded in 1992, we operate a 10,000+ square meter facility equipped with more than 100 production equipment units, including automated element winding machines, high-precision punching lines, and computer-controlled filling stations. Our Vdc Fuse line covers 1000V DC and 1500V DC ratings from 1A to 630A, with breaking capacities up to 100kA, serving photovoltaic, energy storage, industrial control, and railway applications in over 60 export countries.

Frequently Asked Questions

What Voltage Ratings Are Available for Your Vdc Fuse?

Our Vdc Fuse portfolio includes 1000V DC and 1500V DC ratings, with current ratings from 1A to 630A and breaking capacities up to 100kA. These options cover most photovoltaic string protection, energy storage rack, and industrial DC distribution needs. If your system requires a specific rating, our engineers can review your fault current and ambient conditions.
Selection depends on string voltage, maximum fault current, ambient temperature, and installation method. As a rule, choose a Vdc Fuse with a voltage rating at or above the system's maximum DC voltage and a current rating of 1.25 to 1.5 times the string's normal operating current. Share your parameters with us, and we will provide a selection sheet with time-current curves, plus samples for validation.
Yes. Our Vdc Fuse products are manufactured under ISO9001 quality management, carry CCC and CE certifications, and comply with RoHS requirements. We also hold a metering production license. These credentials support smooth customs clearance and regulatory acceptance in Europe, Australia, Latin America, and other key markets, and our team can supply test reports and declarations on request.
Standard Vdc Fuse models ship within 15 to 25 days after order confirmation, depending on quantity. Our minimum order quantity is flexible for trial orders, and we support OEM branding for established customers. For urgent projects, we can prioritize production and arrange express shipping. With over 100 production equipment units, we maintain capacity for both small validation batches and large recurring orders.

Related Articles

SwitchLine OT: The Universal Power Switch

31

Aug

SwitchLine OT: The Universal Power Switch

View More
Why is a load break switch essential for transformer protection?

12

Sep

Why is a load break switch essential for transformer protection?

A load break switch ensures transformer protection and medium voltage switching, delivering essential electrical safety for power distribution networks.
View More
How does a knife switch provide visible circuit disconnection for safety?

16

Sep

How does a knife switch provide visible circuit disconnection for safety?

Why do industrial facilities rely on knife switches for guaranteed visible circuit disconnection? Discover how this mechanical isolation device eliminates ambiguity.
View More
What are the different types of fuse holders for various fuse sizes?

16

Sep

What are the different types of fuse holders for various fuse sizes?

Need the right fuse holder for your application? Compare types for 5x20mm, 6.3x32mm, blade, and cartridge fuses. Find optimal fit, safety, and compliance.
View More

Customer Testimonials

Daniel Ferreira
Consistent Quality Across 200 Combiner Boxes

We installed ZHNYU's 1500V DC Vdc Fuse in 200 combiner boxes for a 50MW solar plant. After 18 months, we have had zero fuse-related failures and inverter availability remains above 99.5%. Their technical team helped us verify the correct rating before shipment, and every batch arrived with complete test documentation.

Anna Keller
Reliable Protection in Battery Storage Systems

The 1000V DC Vdc Fuse reduced our terminal temperature rise by 15 Kelvin during high-current cycling, and maintenance callouts dropped by 25% in the first year. We have standardized this fuse across three container models and now order more than 12,000 units annually. Delivery has been on time every quarter.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
dc fuse 3 phase fuse dc fuses for solar dc fuse blocks dc fuse types dc fuse box solar dc fuse breaker dc inline fuse dc fuse for inverter types of dc fuse ac dc fuse ac fuse and dc fuse high voltage dc fuse dc hrc fuse fuse for dc circuit solar dc fuse box fuse in dc circuit dc fuse for battery dc inline fuse holder

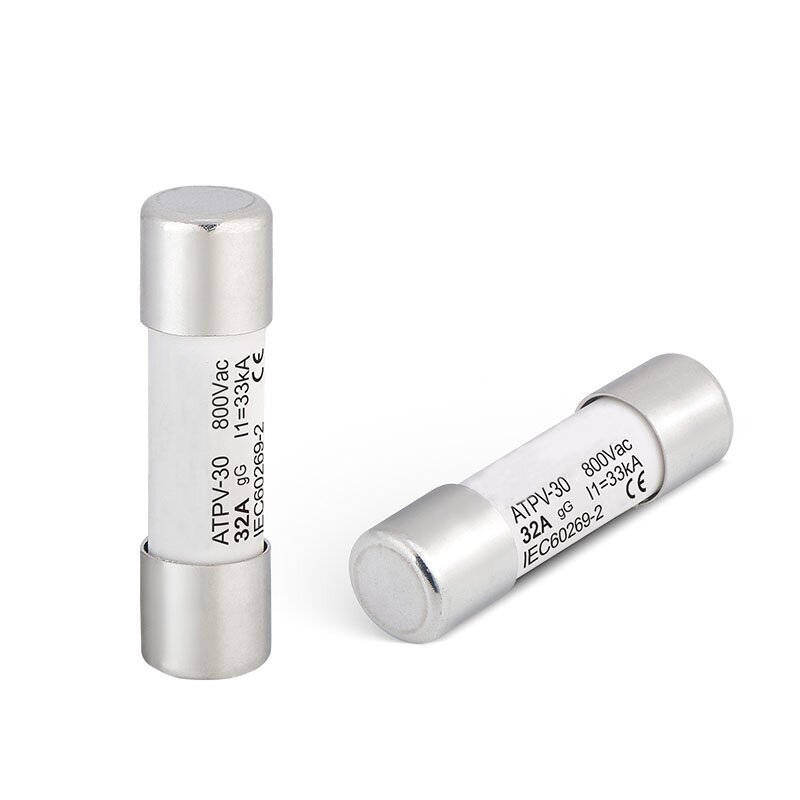

34 Years of Low-Voltage Manufacturing Depth Behind Every Vdc Fuse

34 Years of Low-Voltage Manufacturing Depth Behind Every Vdc Fuse

Few electrical manufacturers can trace a direct line from 1992 to today's photovoltaic and energy storage markets, but ZHNYU ELECTRIC has built exactly that foundation. Our 34 years of production experience shape how each Vdc Fuse is designed and built. With a 10,000+ square meter facility and over 100 production equipment units, we control element punching, welding, sand filling, and testing in-house rather than outsourcing critical steps. This vertical integration matters for DC protection because small variations in element cross-section or filling density change breaking performance. By monitoring sand density within 3% and testing over 500 sample batches annually, we keep field failure rates below 0.2%. For customers in solar, storage, rail, and industrial control, this means predictable trip behavior, longer service life, and fewer unplanned maintenance events.

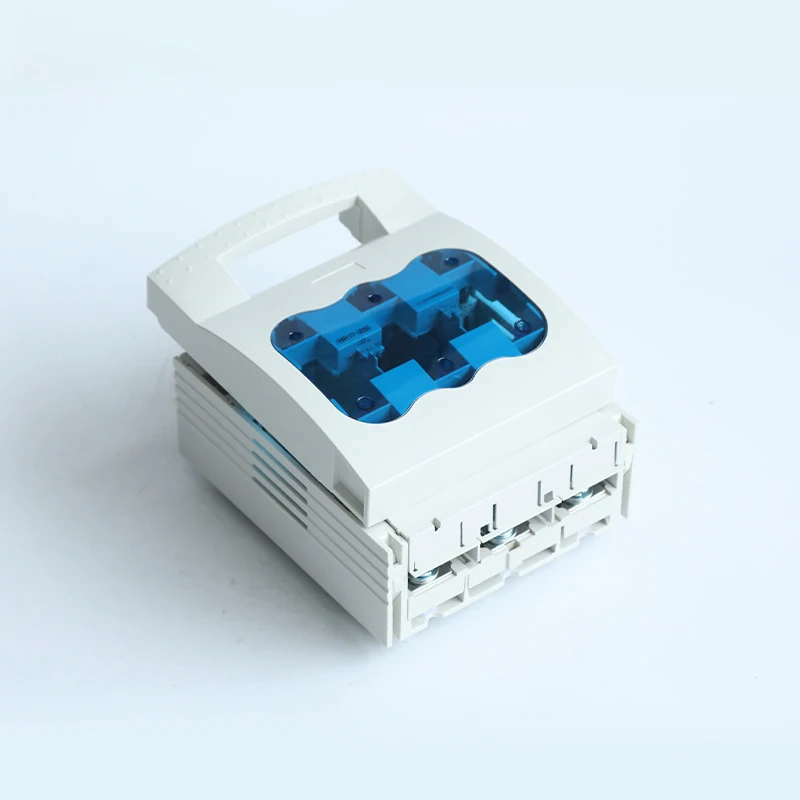

Certified Vdc Fuse Quality That Meets Global Market Requirements

Certified Vdc Fuse Quality That Meets Global Market Requirements

International projects demand documentation as much as performance. Our Vdc Fuse is produced under ISO9001 quality management and carries CCC and CE certifications, with a metering production license and full RoHS compliance. These credentials reduce procurement risk for utilities, EPC contractors, and distributors who must satisfy local regulators and inspection agencies. Beyond certificates, we provide test reports covering breaking capacity, time-current curves, and temperature rise, giving engineers the data needed for approval submissions. In Germany, a battery storage integrator standardized our 1000V DC Vdc Fuse after 2000 hours of cycling tests and expanded annual orders to 12,000 units. In Australia, our 1000V DC Vdc Fuse passed vibration and temperature testing for 320 railway signaling cabinets, cutting protection faults by 60% over two years.

ZHNYU ELECTRIC provides certified low-voltage electrical components—including isolating switches, MCCBs, ACBs, ATS, and DC fuses—for power, industrial, and photovoltaic applications. ISO9001, CE, CCC, RoHS compliant. Serving 60+ countries. Partner with us today.ZHNYU ELECTRIC, founded in 1992, is a professional manufacturer integrating R&D, production and sales of low-voltage electrical components and accessories.
