ZYM1E Electronic MCCB Manufacturer

ZYM1E Molded case circuit breaker

ZYM1E series electronic plastic shell type circuit breaker (hereinafter referred to as circuit breaker), suitable for AC 50Hz(or 60Hz), its rated insulation voltage is 800V, rated working voltage 690V and below, rated working current to 800A circuit for infrequent conversion and motor infrequent

start.

Description

Product representative image

Scope of Application

start. Circuit breaker with overload long delay inverse time, short circuit short delay inverse time, short circuit short delay fixed time short circuit

instantaneous and undervoltage protection function and residual current protection (optional), lack of phase protection function (optional), can

protect the line and power equipment from damage, circuit breaker protection features are complete, accurate, can improve the reliability of power

supply, avoid unnecessary power outage, Among them, the "Z, B" type control has a communication interface, which can be "four remote" to meet

the requirements of the control center and automation system.

According to its rated limit short-circuit breaking capacity, the circuit breaker is divided into M-type (higher breaking type) and H-type (high breaking

type). The circuit breaker has the characteristics of small volume, high breaking capacity, short fly-arc and anti-vibration.

The circuit breaker can be installed vertically (that is, vertically) or horizontally (that is, installed).

The circuit breaker has an isolation function, and its corresponding symbol is:

The circuit breaker cannot be inverted into the line, that is, only 1, 3, 5 are allowed to connect the power line, 2, 4, 6 to the load line

Application Scenarios

◎Handheld programmer

LCD display, simple operation, simple interface, can set various protection parameters of the circuit breaker, the last fault query, function editing, Do

function output programming, etc., can be set according to the user's customized program or other functions upgrade.

◎Overload hot memory function

The overload thermal memory function of the controller can be selected by the user, and is off by default when leaving the factory.

The controller overload thermal memory energy is completely released within 30 minutes.

◎Short-circuit thermal memory function

Controller (short delay) Short circuit current protection thermal memory function can be selected by the user, factory default is off.

The controller (short delay) short circuit current protects the thermal memory energy from being fully released within 15 minutes.

◎Fault recording function

The controller can record the fault type, fault trip time, fault phase and maximum fault current of the last 10 times, and no loss of power failure.

◎Fire division function

For the fire protection system, when the tripping condition is reached under the set parameters, the circuit breaker does not trip and outputs the

normally open and normally closed contact, and provides shunt function can be selected by the user whether to disconnect the circuit breaker.

◎Programmable D0 output function

Controller has four photoelectric signal output, D01 and D02 electrical signals can be programmed for the following function output, D03 is a switch

ing signal, D04 is a closing signal.

Long delay fault	Short delay fault	Ground fault
Leakage fault	Instantaneous fault	Overvoltage fault
Overtemperature fault	Cicuit breaker triped due to a fault	Undervoltage tripping
Long delay fault alam	Short delay fault alam	Ground fault alarm
Leakage fault alam	Instantaneous fault alam	Overvoltage fault alam
Overtemperature fault alam	Trip alarm due to fault	Undervoltage fault alarm

◎Circuit breaker on/Off state detection function (Optional function)

The controller can detect the current on/off state of the circuit breaker and transmit it to the host computer to the computer network in real time.

Normal working conditions

Note:

◎Altitude: ≤2000m

◎Ambient temperature: -5℃~+40℃

◎Resistant to humid air

◎It is resistant to salt spray and oil spray

◎The installation category of the main circuit of the breaker is Ⅲ, and the installation category of the other auxiliary circuits and control circuits is Ⅱ.

◎When the maximum temperature is +40 ° C, the relative humidity of the air does not exceed 50%, and a higher relative humidity can be allowed at a lower humidity,special measures should be taken for condensation occasionally caused by temperature changes.

◎The maximum inclination is 22.5°

◎In a medium where there is no danger of explosion, and where the medium is free of gases and conductive dust sufficient to corrode metal and destroy insulation

◎Where there is no rain or snow

Structural features

The ZYM1E Series Electronic Molded Case Circuit Breaker adopts advanced electronic trip technology to provide precise and reliable protection for modern low-voltage power distribution systems. Compared with conventional thermal-magnetic circuit breakers, it offers more accurate protection characteristics, flexible parameter settings and intelligent monitoring capabilities.

The breaker integrates overload long-time delay protection, short-time delay short-circuit protection, instantaneous short-circuit protection and undervoltage protection into a compact structure. Optional residual current protection and phase-loss protection functions are available to meet various application requirements.

A high-performance electronic trip unit continuously monitors circuit conditions and accurately detects abnormal current fluctuations, ensuring fast fault response while reducing unnecessary tripping and power interruptions.

The optimized contact system and arc-extinguishing chamber provide excellent breaking performance and reliable operation under high fault current conditions. The breaker features short arcing distance, strong anti-vibration capability and long service life.

For intelligent power distribution applications, communication and remote-control functions are available. The intelligent communication version supports integration with automation systems, enabling remote monitoring, fault diagnosis and centralized management.

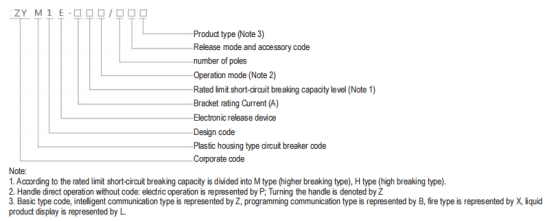

Product Model and Its Meaning
ZYM1E Molded case circuit breaker

Technical Parameters

The ZYM1E Series Electronic MCCB is designed for low-voltage power distribution systems requiring accurate protection and intelligent control.

Item	Specification
Product Type	Electronic Molded Case Circuit Breaker (Electronic MCCB)
Rated Insulation Voltage (Ui)	800V
Rated Operational Voltage (Ue)	AC 690V and below
Rated Frequency	50Hz / 60Hz
Rated Current Range	Up to 800A
Number of Poles	3P / 4P
Installation Method	Vertical or Horizontal
Breaking Capacity Type	M Type / H Type
Isolation Function	Yes
Operating Mode	Manual / Electric Motor Operation
Communication Function	Optional
Remote Control Function	Optional

Protection Functions

The electronic trip unit provides multiple protection functions:

Long-time delay overload protection (L)

Short-time delay short-circuit protection (S)

Instantaneous short-circuit protection (I)

Undervoltage protection (UV)

Earth leakage protection (optional)

Phase-loss protection (optional)

Intelligent Features

Adjustable protection parameters

Digital current monitoring

Fault indication and alarm

Remote monitoring and control

Communication interface for automation systems

Suitable for smart grid and intelligent building applications

Performance Advantages

High protection accuracy

Fast fault response

Reduced nuisance tripping

Enhanced power supply reliability

High breaking capacity

Long electrical and mechanical life

Easy integration with energy management systems

Compliance Standards

The product is designed and manufactured according to:

IEC 60947-1

IEC 60947-2

GB/T 14048.1

GB/T 14048.2

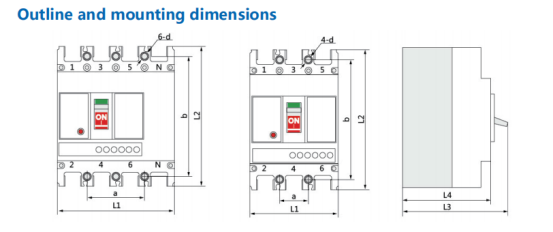

External appearance and installation dimensions

Model	number of poles	Outline dimension(mm)				Insallaion size(mm)
Model	number of poles	L1	L2	L3	L4	a	b	d
ZYM1E-125	3	92max	150max	110max	92max	30	129	φ4.5
ZYM1E-125	4	122max	150max	110max	92max	60	129	φ4.5
ZYM1E-250	3	107max	165max	113max	90max	35	126	φ4.5
ZYM1E-250	4	142max	165max	113max	90max	70	126	φ4.5
ZYM1E-400	3	150max	257max	152max	104max	45	192	φ7
ZYM1E-400	4	198max	257max	152max	104max	94	192	①7
ZYM1E-630 ZYM1E-800	3	210max	280max	155max	115max	70	243	φ7
ZYM1E-630 ZYM1E-800	4	280max	280max	155max	115max	140	243	φ7
