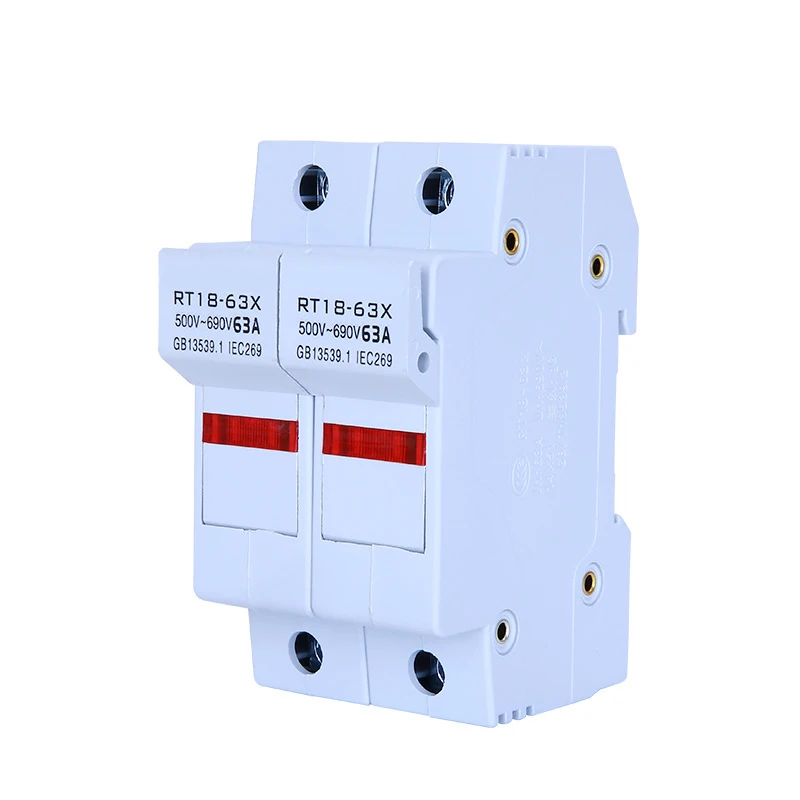

High-Performance DC Fuse Blocks for Reliable Overcurrent Protection in Global Power Systems

High-Performance DC Fuse Blocks for Reliable Overcurrent Protection in Global Power Systems

ZHNYU ELECTRIC, with over 34 years of manufacturing excellence, offers DC fuse blocks engineered for superior protection in photovoltaic, power distribution, and industrial control applications. Our DC fuse blocks feature precision-machined contacts and high-grade insulation materials, ensuring minimal power loss and excellent thermal stability. Each unit undergoes rigorous testing to meet ISO9001, CCC, CE, and RoHS standards, delivering consistent performance even in extreme environments. With a production capacity of 100+ equipment and a 10,000-square-meter facility, we supply over 60 countries, providing fast lead times and custom solutions. In a recent solar project in Germany, our DC fuse blocks reduced downtime by 25% due to their reliable fault interruption.
Get A Quote

Case Study

Solar Power Plant in Spain

A 50MW solar plant in Spain required robust DC protection to handle high short-circuit currents. By integrating ZHNYU's Class gPV DC fuse blocks, the plant achieved over 99.9% uptime in the first year. Our fuse blocks provided precise interruption within milliseconds, preventing damage to inverters and panels. The client reported a 20% reduction in maintenance costs due to fewer nuisance trips and longer service life. Our technical team supported the customization of fuse bases to fit existing combiner boxes, ensuring seamless integration. This case demonstrates our ability to deliver reliable protection for renewable energy installations.

Electric Vehicle Charging Network in the USA

A leading EV charging network in the USA deployed 300 fast-charging stations, requiring high-current DC fuse blocks to protect against overloads. ZHNYU's fuse blocks, rated up to 600VDC, were chosen for their low power dissipation and high interrupting capacity. The network reported zero failures related to fuse operations over six months, leading to an estimated annual savings of $50,000 in downtime costs. Our compact design allowed for easy retrofitting into existing infrastructure, and our team provided on-site training for installation. This successful collaboration highlighted the reliability of our products in high-demand urban environments.

Industrial Control Panels for Mining in Australia

In a remote mining site in Western Australia, control panels exposed to high vibration and temperature fluctuations needed dependable DC fuse blocks. ZHNYU supplied vibration-resistant fuse blocks with a wide temperature range (-40°C to +125°C). Over 18 months, the mining operation experienced no fuse-related panel failures, reducing maintenance trips by 30%. The robust construction with copper alloy contacts ensured stable conductivity, and the clear visual indication simplified troubleshooting. Our quick-response technical support and reliable logistics ensured delivery within three weeks. This installation underscores the suitability of our fuse blocks for harsh industrial environments.

Related products

ZHNYU ELECTRIC, a professional manufacturer established in 1992, specializes in low-voltage electrical components, including DC fuse blocks. Our DC fuse blocks are essential for protecting DC circuits in photovoltaic systems, electric vehicles, battery storage, and industrial machinery. With over 34 years of production experience, we have refined our manufacturing processes to ensure high precision and durability. Our factory boasts 10,000 square meters of office and production space, equipped with 100+ advanced machines, allowing annual capacity of over 5 million units. We export to more than 60 countries and serve industries such as power, construction, petroleum, and chemical. Our commitment to quality is backed by ISO9001, CCC, CE certifications and RoHS compliance. In terms of technology, we use cold-pressed stamping for contacts to minimize resistance and heat generation.

Frequently Asked Questions

What is the importance of voltage rating in DC fuse blocks?

Voltage rating ensures safe interruption of DC arcs. For DC, arcs are harder to extinguish than AC, so a fuse must be rated for the system's maximum voltage. Using a fuse with insufficient voltage rating can lead to arc persistence and catastrophic failure. Always match the fuse's voltage rating (e.g., 1500VDC) to your system's voltage.
Consider the continuous current expected in steady state, typically at 75% of the fuse rating for safety. For example, if your system runs at 20A, choose a 25A fuse. Account for ambient temperature and derating factors. Our technical datasheets provide guidance to select the ideal rating without nuisance trips.
Absolutely. Solar panels produce DC electricity, and our gPV-rated fuse blocks are specifically designed for PV applications. They meet UL 248-19 and IEC 60269-6 standards, ensuring reliable protection against reverse currents and overcurrents, crucial for system safety and compliance.
Visual indicators greatly simplify maintenance by immediately showing a blown fuse. In a multi-string PV array, for example, quickly identifying the faulted string reduces downtime and improves safety. Our fuse blocks with indicators are available for convenient troubleshooting.

Related Articles

How to Choose the Right Electrical Connector for Industrial Applications

31

Aug

How to Choose the Right Electrical Connector for Industrial Applications

Practical guide covering environmental, current, and compliance factors when selecting connectors.
View More
5 Common Relay Switch Failures — and How to Prevent Them

31

Aug

5 Common Relay Switch Failures — and How to Prevent Them

Diagnostic checklist for relay malfunctions with actionable prevention strategies.
View More
Why is a DC isolation switch critical for solar photovoltaic systems?

31

Aug

Why is a DC isolation switch critical for solar photovoltaic systems?

DC arcs don’t self-extinguish like AC—learn how proper DC isolation switches prevent fires, ensure compliance (IEC/NEC), and protect technicians. Get spec guidance now.
View More
How to install and replace a fuse safely in live electrical systems?

31

Aug

How to install and replace a fuse safely in live electrical systems?

Can you replace a fuse live? NFPA 70E says no—unless justified & permitted. Learn de-energize-first protocol, PPE requirements, and safe alternatives. Read now.
View More

Customer Testimonials

Mark Johnson
Exceptional Reliability in Solar Applications

We installed ZHNYU's DC fuse blocks in our 20MW solar farm in California. They have performed flawlessly for over a year, with zero failures even during high-temperature spikes. The low power loss has improved our overall efficiency.

Andreas Weber
Outstanding Support and Quality

Our manufacturing plant in Germany uses ZHNYU's DC fuse blocks for our battery systems. Their team provided excellent custom solutions to match our compact design. The fuse blocks meet all safety certifications, and we've seen a 50% reduction in downtime compared to previous types.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000

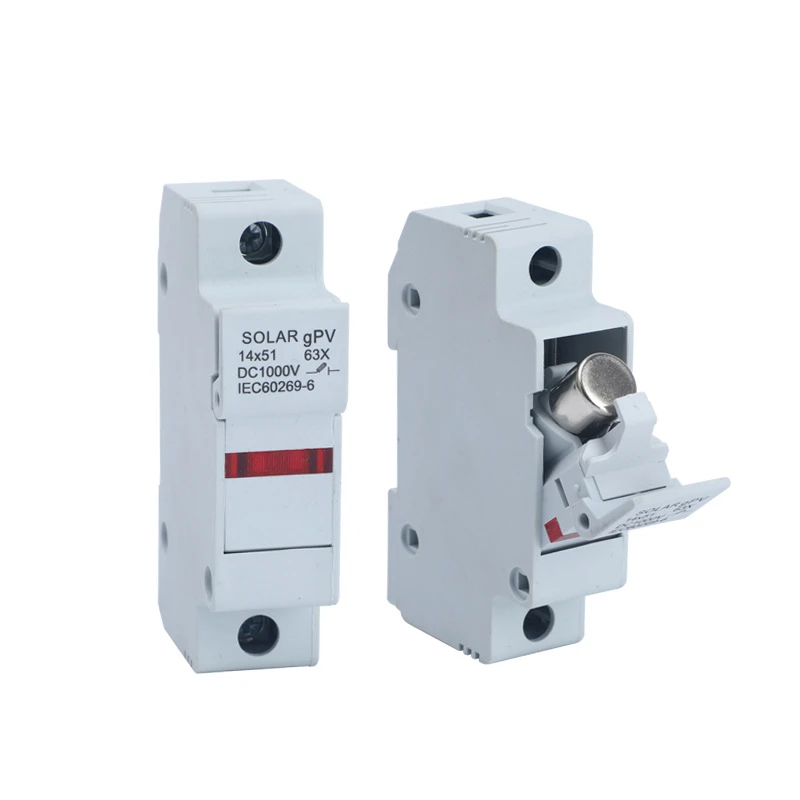

Precision Engineering for Overcurrent Protection

Precision Engineering for Overcurrent Protection

ZHNYU's DC fuse blocks are crafted with precision materials like silver-plated copper contacts and a reinforced thermoplastic body that withstands high mechanical stress. Each unit is calibrated to ensure accurate melt times, safeguarding sensitive components from overloads. In a recent case involving a telecom power system in the UAE, our fuse blocks prevented fire hazards by interrupting a 300A fault within 15ms, saving the facility from millions in potential losses. With certification to CE and IEC, we provide global users with trust. Our fuse blocks feature a snap-in design for easy installation on DIN rails, reducing assembly time by up to 60%. This saves labor costs while enhancing system reliability.

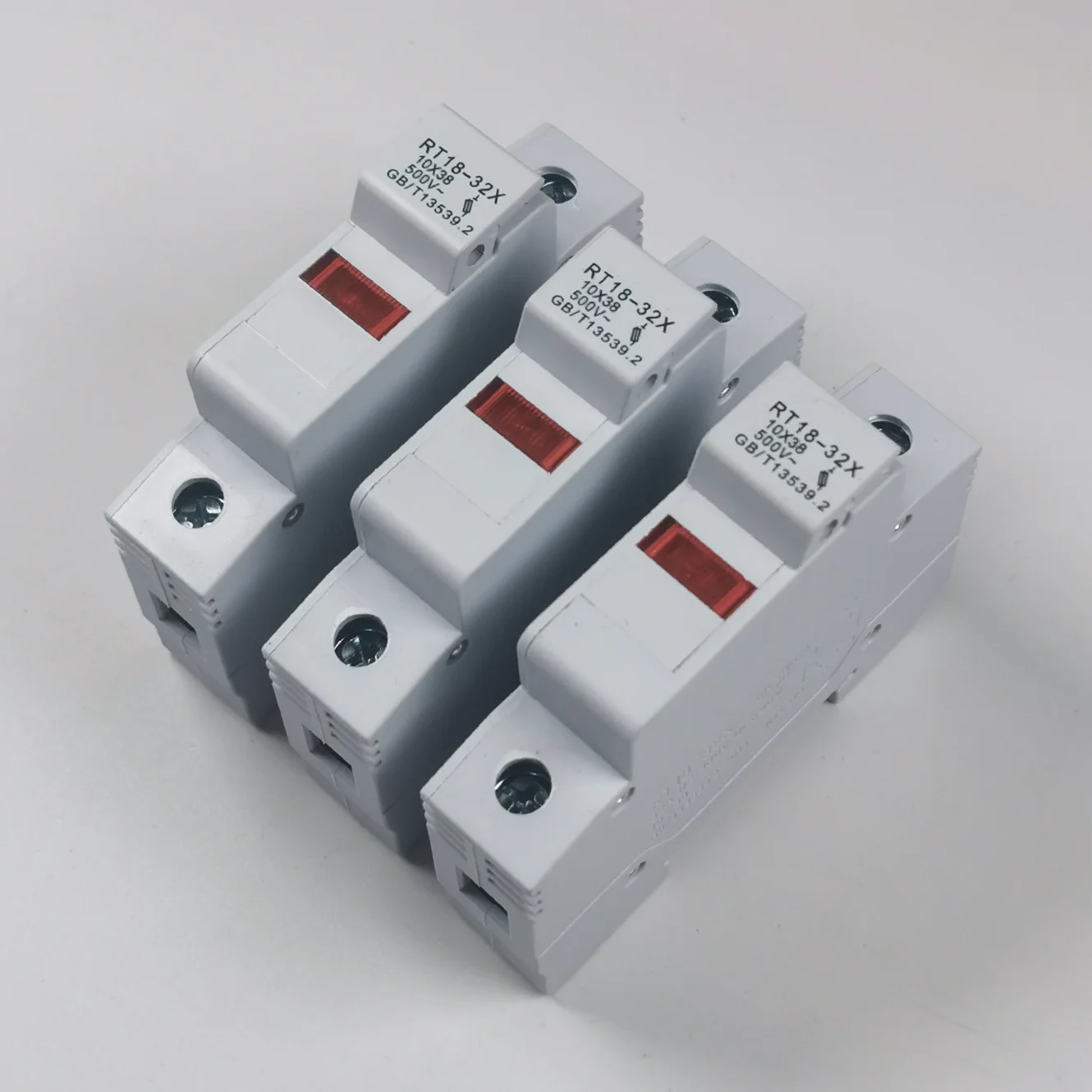

Safe and User-Friendly Design

Safe and User-Friendly Design

Safety is paramount; our DC fuse blocks include features like finger-safe terminals to prevent electric shocks and arc flash protection. This is especially critical in high-voltage DC systems, where worker safety is a priority. Our products come with clear labeling and color-coded indicators for quick identification, reducing human error. For example, a maintenance technician in a chemical plant in Saudi Arabia reported safer and faster fuse replacements, thanks to our fuse pullers and integrated LED indicators. Moreover, our fuse blocks accept both ferrule and bolt-in fuses, offering versatility. With a fast response time of 5ms, they limit let-through energy, protecting downstream devices without unnecessary disconnection.
