ZYM1L Residual Current MCCB Manufacturer

ZYM1L Molded case circuit breaker

ZYM1L series with residual current protection type plastic case leakage circuit breaker (hereinafter referred to as circuit breaker), its rated insulation

voltage is 800V, suitable for AC 50Hz, rated working voltage 400V, rated working current to 800A circuit for infrequent conversion and motor

infrequent start.

Description

Product representative image

Scope of Application

ZYM1L series with residual current protection type plastic case leakage circuit breaker (hereinafter referred to as circuit breaker), its rated insulation

voltage is 800V, suitable for AC 50Hz, rated working voltage 400V, rated working current to 800A circuit for infrequent conversion and motor

infrequent start. Circuit breaker with overload, short circuit and under voltage protection function, can protect the line and power equipment from

damage, but also can be overcurrent protection can not detect the long-term existence of ground fault may cause fire danger to provide protection.

Circuit breaker according to its face limit short circuit breaking capacity (cu) level, It is divided into L type (ordinary type), M type (high score type)

and H type (high score type). The circuit breaker has the characteristics of small volume, high breaking, short flying arc and anti-vibration.

◎The circuit breaker can be vertically installed (that is, vertically installed) or horizontally installed (that is, horizontally installed).

◎This circuit breaker can not be poured into the line, even if 1, 3, 5 is allowed to connect the power line, 2, 4, 6 to the load line. The circuit breaker

is suitable for isolation and is indicated by the symbol” ”.

◎ This circuit breaker product implements the following standards:

IEC 60947-1 and GB/T140481 in general

IEC 60947-2 and GB/T14048.2 Low-voltage circuit breakers and Appendix B circuit breakers with residual current protection

IEC 60947-4 and GB/T14048.4 contactors and motor starters

IEC 60947-5.1 and GB/T14048.5S electromechanical control circuit appliances

Application Scenarios

The ZYM1L Series Residual Current Operated Molded Case Circuit Breaker combines overload protection, short-circuit protection and earth leakage protection in one compact device. It is designed to provide comprehensive protection for personnel, electrical equipment and distribution systems.

It is widely used in commercial, industrial and infrastructure projects where electrical safety is critical.

Commercial Buildings

Shopping malls, office buildings, hotels, hospitals and schools require reliable leakage protection to prevent electric shock accidents and reduce fire risks caused by insulation failures.

Industrial Facilities

Suitable for factories, manufacturing plants and industrial workshops where electrical equipment operates continuously and requires protection against overloads, short circuits and earth leakage faults.

Residential and Apartment Distribution Systems

Provides enhanced protection for residents by quickly disconnecting faulty circuits when leakage currents occur, ensuring personal safety and equipment protection.

Public Infrastructure

Commonly installed in airports, railway stations, telecommunication facilities, water treatment plants and municipal projects where uninterrupted and safe power distribution is essential.

Renewable Energy Systems

Applicable to photovoltaic power stations, energy storage systems and other new energy installations requiring reliable fault protection and isolation functions.

Marine and Offshore Applications

Its compact design, strong anti-vibration performance and dependable protection characteristics make it suitable for marine electrical distribution systems.

Normal working conditions

To ensure reliable performance, the circuit breaker should be installed and operated under the following environmental conditions:

Ambient temperature: -5°C to +40°C, with the average temperature within 24 hours not exceeding +35°C.

Installation altitude not exceeding 2000 meters above sea level.

Relative humidity should not exceed 50% at +40°C. Higher humidity is permissible at lower temperatures.

Pollution degree: Grade 3.

Installation category: Category III.

The circuit breaker may be installed vertically or horizontally.

The installation location should be free from explosive gas, conductive dust and substances that may corrode metal parts or damage insulation.

Suitable for indoor environments with adequate ventilation.

Structural features

The ZYM1L Series adopts an integrated protection design that combines conventional circuit protection with residual current protection, providing a higher level of electrical safety compared with standard molded case circuit breakers.

The breaker utilizes a high-performance thermal-magnetic trip mechanism for overload and short-circuit protection, while the built-in residual current detection module continuously monitors leakage currents in the system. Once the leakage current reaches the preset value, the breaker disconnects the circuit rapidly to prevent electric shock and electrical fires.

The compact molded insulating enclosure offers excellent dielectric strength, mechanical durability and flame resistance. The optimized contact system and arc extinguishing chamber ensure quick fault interruption and reliable switching performance.

For different application requirements, the breaker can be equipped with various accessories, including:

Auxiliary contacts

Alarm contacts

Shunt release

Undervoltage release

Motor operating mechanism

Rotary operating handle

Leakage alarm module

The product supports both incoming and outgoing line installation and can be used for circuit isolation when required.

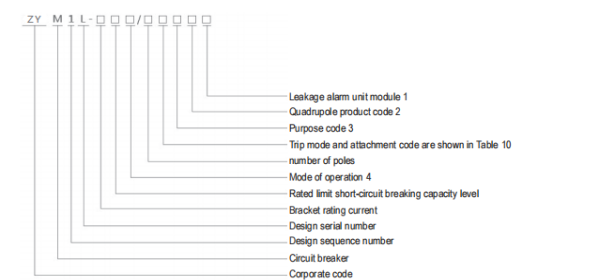

Product Model and Its Meaning
ZYM1L Molded case circuit breaker

Technical Parameters

The ZYM1L Series is designed for AC 50Hz power distribution systems and can be used for circuit protection and leakage protection in circuits with rated operating voltages up to AC 400V.

Key performance characteristics include:

Rated insulation voltage (Ui): 800V

Rated operational voltage (Ue): AC 400V

Rated current range: up to 800A

Frequency: 50Hz

Number of poles: 3P / 4P

Protection functions: overload, short-circuit, earth leakage and undervoltage protection

Installation method: vertical or horizontal installation

Breaking capacity options: L type (standard), M type (high breaking), H type (high performance)

Leakage alarm module available

Isolation function compliant with relevant standards

Suitable for infrequent switching operations and motor starting applications

The product conforms to:

IEC 60947-1

IEC 60947-2

IEC 60947-4-1

IEC 60947-5-1

GB/T 14048 series standards

The breaker offers fast fault response, reliable leakage detection and long service life, making it an ideal solution for modern low-voltage power distribution systems.

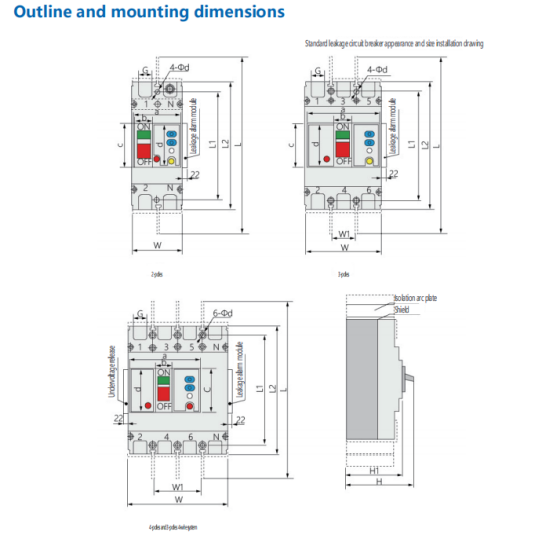

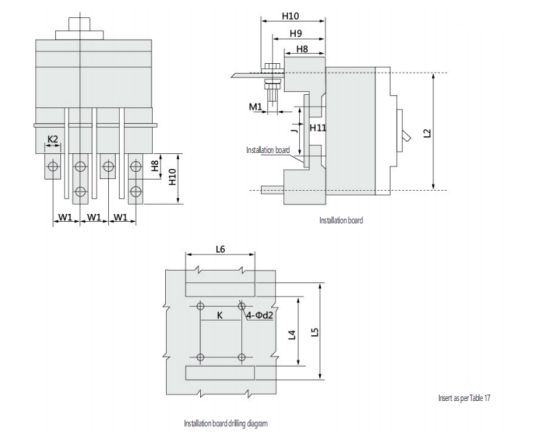

External appearance and installation dimensions

Model	pole numbers	Maximum dimensions(Max)											Installation dimensions
Model	pole numbers	L2	W	H	H1	L	a	b	C	d		G	W1	L1		ΦD
ZYM1L-125L	2	151	62	94	75	254	59	23	50	47	-		18		129		φ4.5
	3	150	92	94	75	254	88	23	50	47	18		30		129		φ4.5
	4	150	122	94	75	254	88	23	50	47	18		60		129		φ4.5
ZYM1L-125M、H	2	151	62	110	92	254	59	23	50	47	-		18		129		φ4.5
	3	150	92	110	92	254	88	23	50	47	18		30		129		φ4.5
	4	150	122	110	92	254	88	23	50	47	18		60		129		φ4.5
ZYM1L-250L	2	165	78	94	72	300	72	22.5	50.5	47	-		23.5		124		φ4.5
	3	165	107	94	72	300	102	22.5	50	47	23.5		35		124		φ4.5
	4	165	142	94	72	300	102	22.5	50	47	23.5		70		124		φ4.5
ZYM1L-250M、H	2	165	78	110	90	300	72	22.5	50.5	47	一		23.5		124		φ4.5
	3	165	107	110	90	300	102	22.5	50	47	23.5		35		124		φ4.5
	4	165	142	110	90	300	102	22.5	50	47	23.5		70		124		φ4.5
ZYM¹L- 400	3	257	150	146	106	471	140	56	91	86	33		44		192		φ7
ZYM¹L- 400	4	257	198	146	106	471	140	56	91	86	33		96		192		φ7
ZYM1L-630~800	3	280	210	155	116	494	182	64	91	86	45		70		242		φ7
ZYM1L-630~800	4	280	280	155	116	494	182	64	91	86	45		140		242		φ7
