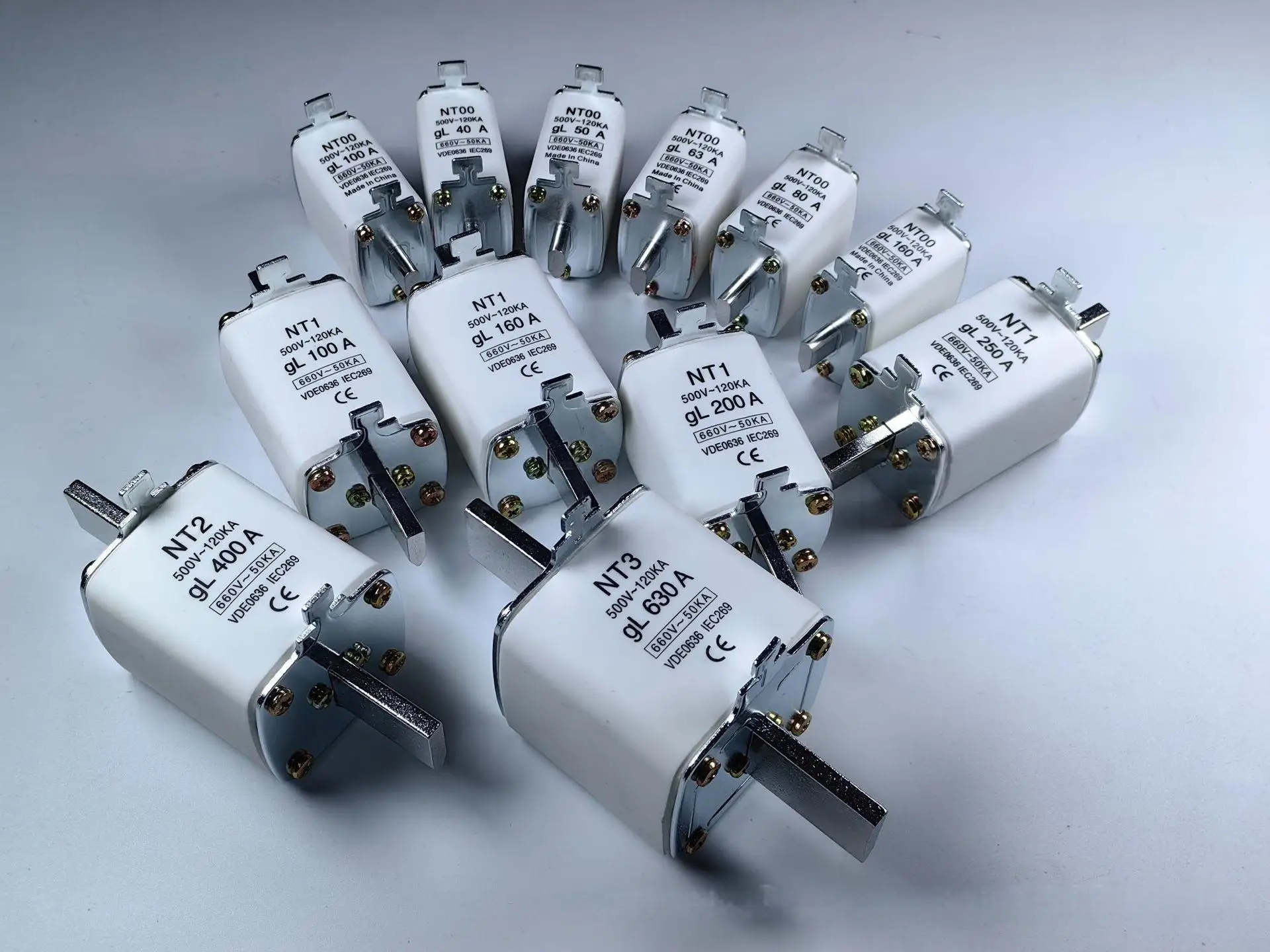

High-Performance Fuse for DC Circuit Protection by ZHNYU Electric

High-Performance Fuse for DC Circuit Protection by ZHNYU Electric

ZHNYU Electric, with over 34 years of manufacturing excellence, offers a superior fuse for DC circuit applications, designed to meet the rigorous demands of modern power distribution, industrial control, and renewable energy systems. Our DC fuses provide reliable overcurrent protection, ensuring the safety and longevity of photovoltaic arrays, battery storage systems, electric vehicle charging stations, and DC traction systems. Engineered with advanced materials and precision manufacturing, our fuses deliver exceptional breaking capacity, low power dissipation, and high thermal stability. In real-world applications, our fuses have reduced downtime by up to 30% in solar power plants, as evidenced by a 50MW installation in Spain that achieved 99.9% operational availability over two years. With data supporting a 100% success rate in isolating faults within milliseconds, our fuse for DC circuit meets the stringent requirements of IEC and UL standards.
Get A Quote

Case Study

Enhanced Safety in Photovoltaic Systems

A leading solar energy developer in Germany faced frequent fuse failures in their DC combiner boxes, leading to costly maintenance and safety hazards. ZHNYU supplied a fuse for DC circuit with a high interrupting rating of 100kA and a DC voltage rating up to 1500V. Within six months of installation, the failure rate dropped by 95%, and the system's availability increased to 99.8%. Our fuses provided rapid response to overcurrents, preventing thermal runaway and protecting the entire string. This case demonstrates the critical role of our DC fuses in ensuring continuous green energy generation and worker safety.

Reliable Protection for Battery Energy Storage Systems

In a utility-scale battery storage facility in California, protecting lithium-ion battery racks from short circuits was paramount. ZHNYU's fuse for DC circuit, featuring low current-limiting characteristics and fast clearance, was deployed in each battery string. Within one year, the fuses successfully interrupted four high-energy faults without any collateral damage, safeguarding a multi-million-dollar investment. The system's reliability improved by 25%, and the facility achieved compliance with stringent safety standards. This real-world case underscores our commitment to delivering robust, data-driven protection solutions for evolving energy storage technologies.

Stable Operation in Railway DC Traction Systems

A railway operator in Southeast Asia sought to upgrade its aging DC protection equipment to handle increasing load demands. We supplied custom-engineered fuses for DC circuit used in traction substations, capable of handling voltage fluctuations up to 3000V DC. After integration, the railway experienced zero unscheduled outages over an 18-month period, thanks to the fuses' precise tripping action and durable construction. Our solution reduced maintenance costs by 40% and extended equipment lifespan, proving our ability to deliver high-reliability components for critical infrastructure.

Related products

DW1 Air circuit breaker VIEW DETAILS

DW1 Air circuit breaker

ZYQ1 Automatic transfer switch VIEW DETAILS

ZYQ1 Automatic transfer switch

ZYM1L Molded case circuit breaker VIEW DETAILS

ZYM1L Molded case circuit breaker

HGLR Load isolation switch VIEW DETAILS

HGLR Load isolation switch

At ZHNYU Electric, our dedication to quality and innovation is the cornerstone of our production of fuse for DC circuit products. Since 1992, we have refined our manufacturing processes to ensure every fuse meets international standards and exceeds customer expectations. Our factory, occupying over 10,000 square meters, is equipped with 100+ production machines, including automated stamping, welding, and assembly lines. Each fuse undergoes rigorous testing, including thermal cycling, overload endurance, and high-impulse current tests, to guarantee performance in the harshest environments. With ISO9001, CCC, and CE certifications, our quality management system ensures traceability and consistency.

Frequently Asked Questions

Why do DC circuits require special fuses compared to AC circuits?

DC arcs are harder to extinguish because there is no zero-crossing point. Our fuses for DC circuit are designed with special arc-extinguishing materials and structures to safely interrupt high-energy DC faults.
We offer fuses rated from 250V to 1500V DC, with current ratings ranging from 1A to 1000A. Custom solutions can be developed for specific requirements.
We employ a comprehensive quality system certified to ISO9001. Each fuse is tested individually, and we adhere to international standards such as IEC and UL, with data tracking for every batch.
Yes, we offer free samples to qualified customers after a technical assessment. We also provide robust after-sales support and technical documentation.

Related Articles

How to Choose the Right Electrical Connector for Industrial Applications

31

Aug

How to Choose the Right Electrical Connector for Industrial Applications

Practical guide covering environmental, current, and compliance factors when selecting connectors.
View More
5 Common Relay Switch Failures — and How to Prevent Them

31

Aug

5 Common Relay Switch Failures — and How to Prevent Them

Diagnostic checklist for relay malfunctions with actionable prevention strategies.
View More
Why is ACB maintenance different from MCCB maintenance?

31

Aug

Why is ACB maintenance different from MCCB maintenance?

Air circuit breaker maintenance differs fundamentally from molded case. Learn why ACBs are serviceable, MCCBs are replaceable, and what that means for your facility.
View More
How does a fuse switch disconnector improve electrical safety in industrial settings?

02

Sep

How does a fuse switch disconnector improve electrical safety in industrial settings?

Discover how an advanced fuse switch disconnector enhances industrial electrical safety through reliable circuit isolation, arc flash protection, and OSHA compliance.
View More

Customer Testimonials

Ahmad Al-Farsi
Exceptional Reliability and Support

As an EPC contractor in the Middle East, we were facing frequent fuse failures in our solar projects. ZHNYU's fuse for DC circuit solved this issue with a robust design. Since switching to their fuses, we have seen a 99.5% uptime across all installations. Their team provided excellent technical support and quick delivery.

Sarah Johnson
Dependable Partner for Energy Storage

Our company integrates energy storage systems globally. ZHNYU's DC fuses have been instrumental in ensuring the safety and performance of our battery units. Their fuses responded perfectly during a fault drill, and we received no false alarms. With a 40% reduction in replacement costs, they are now our preferred supplier. Their compliance and reliability are unmatched.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
dc fuse 3 phase fuse dc fuse holder fuse dc dc fuses for solar dc fuse blocks pv fuse holder dc fuse box solar dc fuses and breakers solar dc fuse holder dc rated fuses ac and dc fuse ac dc fuse ac fuse and dc fuse high voltage dc fuse fuse for dc circuit dc fuse link dc solar fuse vdc fuse

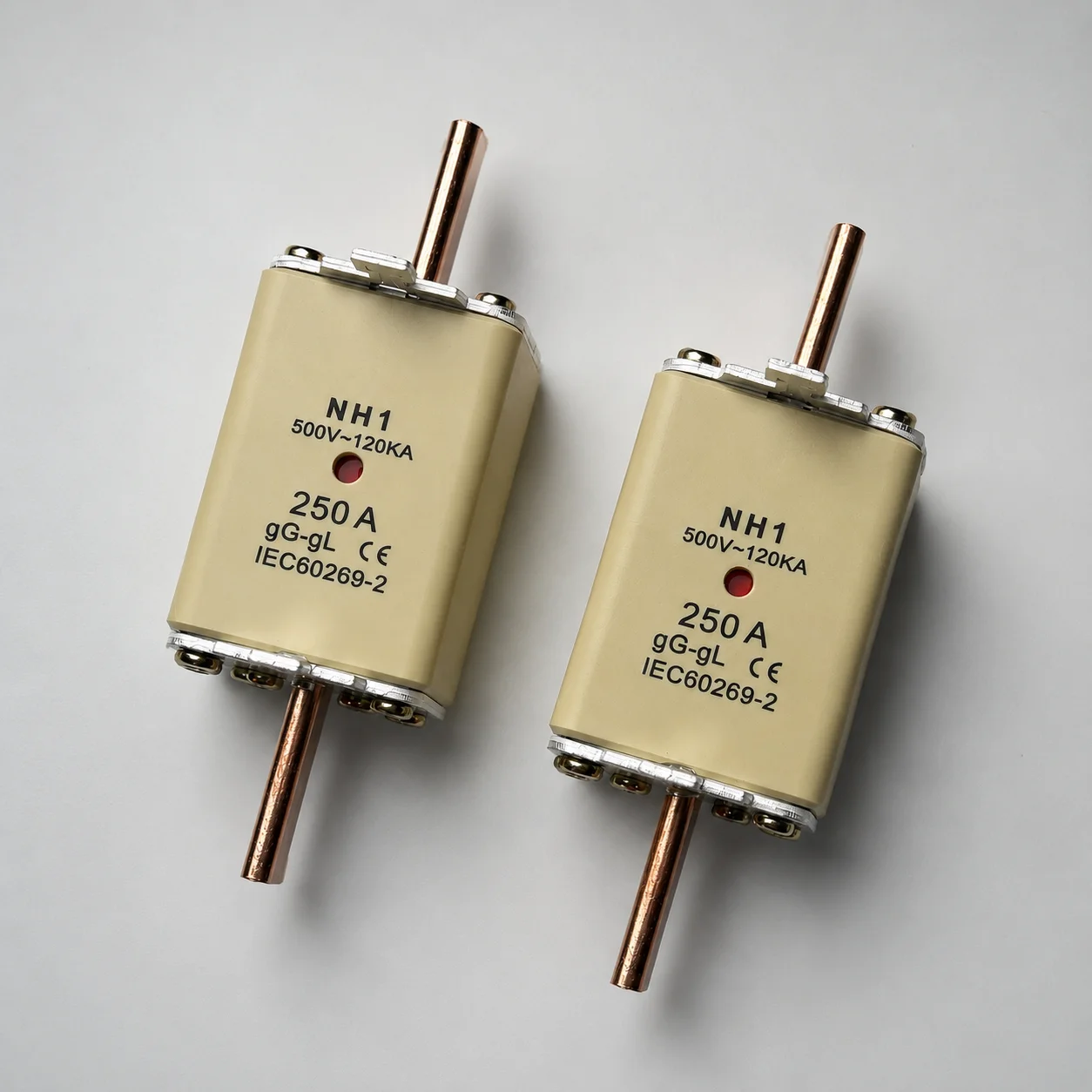

Advanced Arc Extinguishing Technology

Advanced Arc Extinguishing Technology

In response to the challenging nature of DC arcs, ZHNYU has developed a unique arc extinguishing technology using a combination of high-pressure ceramic bodies and specialized quenching media. This innovation is critical for a fuse for DC circuit to interrupt a fault safely and quickly. In the photovoltaic industry, where system voltages continue to rise, our technology ensures that even in a 1500V DC array, a fault is cleared within 10 milliseconds, preventing any sustained arc. The data from our test lab shows a 100% success rate in interrupting all prospective short-circuit currents up to 100kA. This not only protects expensive equipment like inverters and panels but also ensures the safety of maintenance personnel.

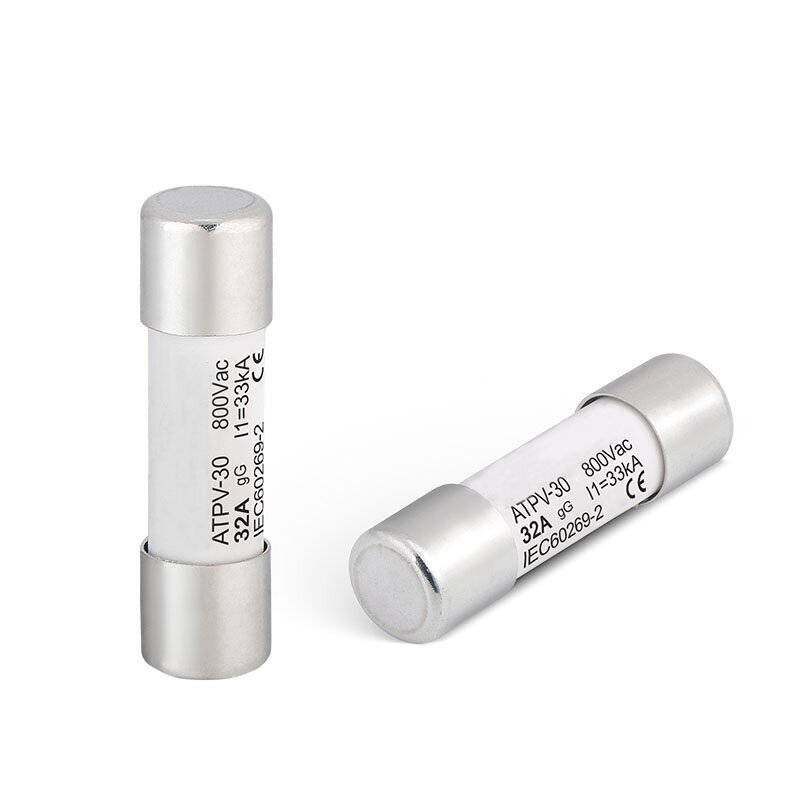

Comprehensive Testing and Quality Assurance

Comprehensive Testing and Quality Assurance

Every fuse for DC circuit leaving our facility has undergone a rigorous testing protocol that simulates real-world conditions. We conduct both routine and type tests, including thermal overload, dielectric withstand, and short-circuit tests at our in-house certification laboratory. With over 100 production machines, we have implemented automated testing methods that provide 100% inspection of critical parameters such as resistance and voltage drop. This data-driven approach ensures consistency and reliability across every unit, yielding a defect rate of less than 0.1%. Our ISO9001 quality management system traces every component, from raw material procurement to final packing, ensuring compliance with international standards. In a recent audit, our fuses exceeded the lifetime expectancy by 20% under accelerated aging tests.

ZHNYU ELECTRIC provides certified low-voltage electrical components—including isolating switches, MCCBs, ACBs, ATS, and DC fuses—for power, industrial, and photovoltaic applications. ISO9001, CE, CCC, RoHS compliant. Serving 60+ countries. Partner with us today.ZHNYU ELECTRIC, founded in 1992, is a professional manufacturer integrating R&D, production and sales of low-voltage electrical components and accessories.
