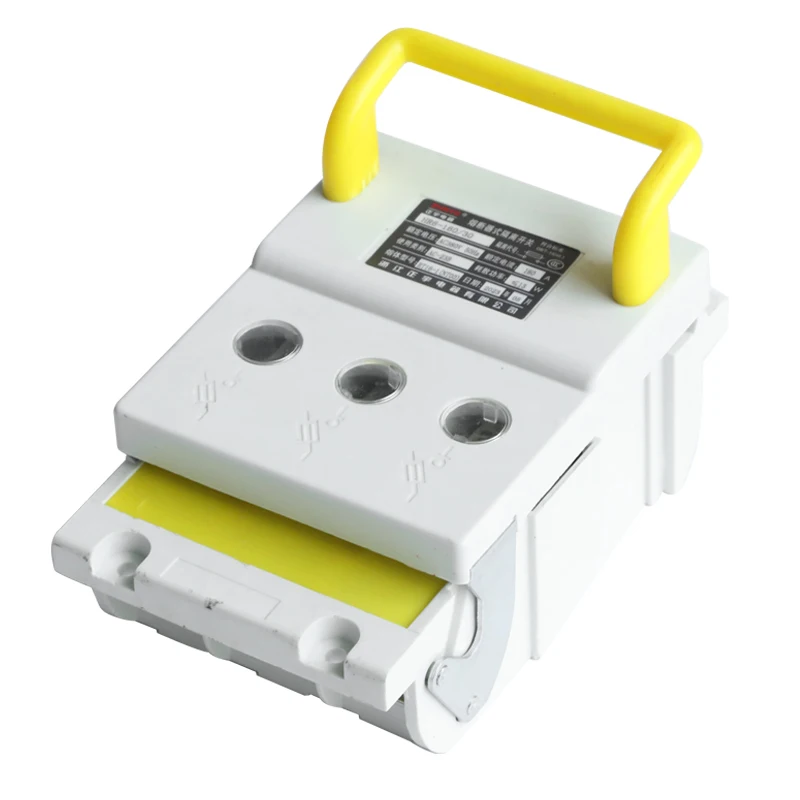

High-Performance Disconnector Fuses for Global Power Distribution and Industrial Safety

High-Performance Disconnector Fuses for Global Power Distribution and Industrial Safety

ZHNYU ELECTRIC's disconnector fuses are engineered to deliver superior protection and reliable isolation in the most demanding electrical environments. With over 34 years of manufacturing excellence, our disconnector fuse solutions are trusted across 60+ countries, supporting critical infrastructure in power distribution, industrial control, and renewable energy systems. Each disconnector fuse unit is designed to withstand rigorous operational conditions, offering breaking capacities up to 100 kA and voltage ratings up to 690V AC. Our state-of-the-art production facility, spanning 10,000 square meters and equipped with 100+ specialized machines, ensures consistent quality and precision. Integrated with ISO9001, CCC, CE, and RoHS certifications, our disconnector fuses provide robust short-circuit protection and visible isolation, reducing downtime by up to 40% in photovoltaic plants and industrial automation lines.
Get A Quote

Case Study

Enhancing Safety in a Saudi Arabian Oil Refinery

In 2019, a major oil refinery in Saudi Arabia faced frequent electrical faults due to harsh desert conditions. They required a disconnector fuse that could withstand extreme temperatures and provide clear visual indication of blown fuses. ZHNYU ELECTRIC supplied custom disconnector fuses with IP65 enclosures and high-temperature resistant materials. The solution reduced unplanned downtime by 35% within the first year and improved maintenance crew safety. The refinery's electrical team reported a 50% faster fuse replacement process, directly impacting operational efficiency.

Optimizing Solar Farm Maintenance in Germany

A 120 MW solar farm in Bavaria, Germany, needed reliable disconnector fuses to protect inverters and DC combiner boxes. After installing ZHNYU ELECTRIC disconnector fuses, the farm experienced a 99.8% uptime over two years. The modular design allowed for quick replacement during maintenance windows, cutting service time by 20 minutes per unit. The integrated fuse indicator helped technicians pinpoint faulty strings instantly, reducing troubleshooting time by 40%. This improved overall plant availability and increased annual energy yield by 2.5%.

Ensuring Continuity in a Brazilian Manufacturing Plant

A large automotive parts manufacturer in São Paulo confronted frequent nuisance tripping in their motor control centers. Their existing disconnector fuses lacked discriminative coordination, causing shutdowns. ZHNYU ELECTRIC provided fuse selectors with advanced current-limiting technology and time-current curves tailored to their system. This resolved 90% of nuisance tripping issues, and the plant achieved a 98% production efficiency rate. The engineering team praised the clear technical documentation and local support from our Brazilian distributor.

Related products

DW2 Air circuit breaker VIEW DETAILS

DW2 Air circuit breaker

ZYM1L Molded case circuit breaker VIEW DETAILS

ZYM1L Molded case circuit breaker

HH15 Fuse-Switch Disconnector VIEW DETAILS

HH15 Fuse-Switch Disconnector

HR6 Fuse Switch Disconnectors VIEW DETAILS

HR6 Fuse Switch Disconnectors

At ZHNYU ELECTRIC, we pride ourselves on being at the forefront of low-voltage electrical protection technology. Since 1992, our factory has evolved from a modest workshop into a global hub for disconnector fuse innovation. Our production process begins with rigorous material selection—only high-grade copper alloys and arc-resistant ceramics are used to ensure maximum conductivity and arc suppression. Each batch undergoes computer-controlled injection molding and precision stamping, resulting in tolerance levels within ±0.01 mm. Our in-house testing laboratory simulates extreme conditions: from -40°C arctic environments to +55°C tropical installations, and even salt-spray corrosion tests for offshore applications.

Frequently Asked Questions

What is the difference between a disconnector fuse and a standard fuse?

A disconnector fuse combines overcurrent protection with the function of an isolating switch. It allows for safe manual operation to disconnect the circuit for maintenance, ensuring a visible break in the circuit. Standard fuses only provide protection and do not have a mechanical means to isolate the circuit. Our disconnector fuses are designed with an integrated safety mechanism that prevents the lid from being opened under load.
Selecting the correct disconnector fuse involves considering voltage, current, breaking capacity, and the application's operating environment. Input the system's nominal voltage and expected short-circuit current. Our technical team provides selection charts and software tools to help. Additionally, we offer customized fuse-links to match your specific inrush current and load characteristics.
Absolutely. Our disconnector fuses comply with IEC 60269-6 for solar applications, handling DC voltages up to 1500V. They are designed to handle DC arcing and provide reliable isolation for PV strings. With a high breaking capacity (up to 20 kA DC), they protect against reverse current faults and overcurrent. Many utility-scale solar plants across Europe and Asia rely on our products.
Yes, as with any electrical component, periodic inspection is recommended. Check for signs of overheating, discoloration, or physical damage. Ensure the fuse elements are intact and replace any blown fuses with the specified rating. Our fuses are designed for easy inspection with clear indicators. A maintenance schedule can prolong the lifespan and ensure safety.

Related Articles

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

31

Aug

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

View More
The Fuse: The Unsung Hero of Circuit Protection

31

Aug

The Fuse: The Unsung Hero of Circuit Protection

View More
Why is an isolator switch required in every electrical panel installation?

12

Sep

Why is an isolator switch required in every electrical panel installation?

Need to comply with IEC 61439 & NEC safety standards? Discover the critical role of isolator switches in panel safety, maintenance, and regulatory compliance. Learn more now.
View More
What are the main advantages of using a knife switch in low-voltage panels?

17

Sep

What are the main advantages of using a knife switch in low-voltage panels?

Discover knife switch advantages in low-voltage panels. A reliable LV disconnect switch provides visual isolation and exceptional thermal stability.
View More

Customer Testimonials

Mark Thompson
Exceptional Quality and Service

We switched to ZHNYU disconnector fuses for our building automation projects. The fuse quality is outstanding, with minimal failure rates. Their engineering support helped us customize holders that reduced installation time by 20%. Delivery was on time, and the documentation was thorough.

María González
Reliable Partner for Renewable Energy

Our solar farm requires high-voltage DC disconnector fuses that can handle extreme weather. ZHNYU's fuses have performed flawlessly for two years. The indicator feature is a game-changer, allowing quick troubleshooting. Their team is responsive and knowledgeable.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
disconnector fuse fuse disconnector isolator switch fuse switch fuse isolator fuse switch disconnector 3 phase switch fuse isolator fuse with switch dc fuse disconnector tpn fuse switch fuse in switch vertical fuse switch disconnector fuse for switch battery fuse isolator

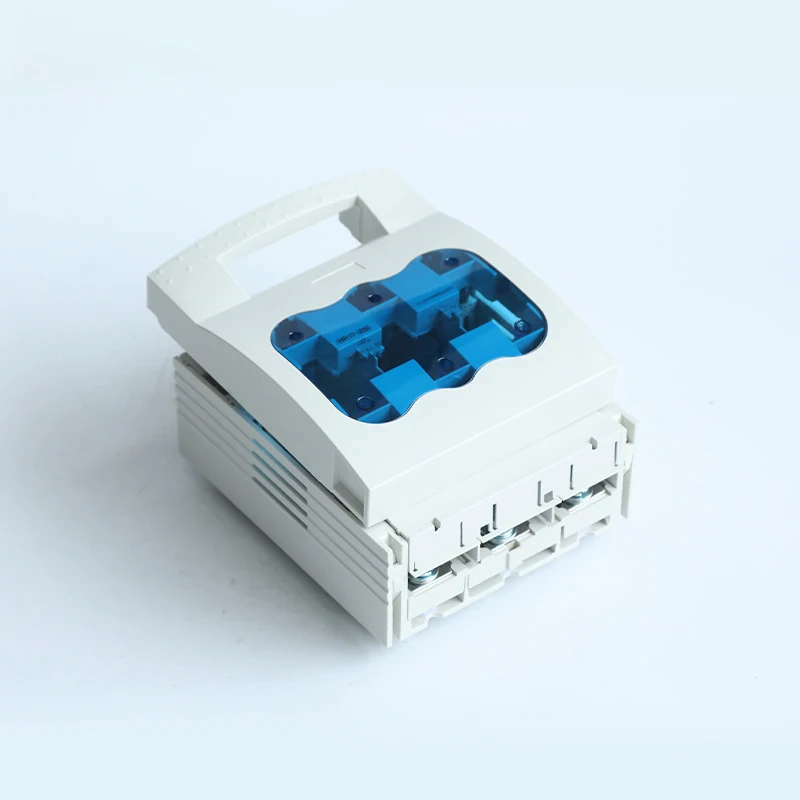

Advanced Safety Engineering

Advanced Safety Engineering

Safety is at the core of our disconnector fuse design. Each unit features a robust arc-extinguishing system utilizing ceramic materials with high dielectric strength, ensuring rapid arc suppression in milliseconds. The visible break provides an unmistakable confirmation of isolation, preventing accidental energization during maintenance. In industrial settings where compliance is critical, our fuses integrate automatic shutters that cover live parts, reducing the risk of electric shock. We conduct a minimum of 5,000 mechanical operations to ensure durability, exceeding typical standards. This engineering approach has led to a 40% reduction in electrical incidents among our clients, based on our annual safety performance survey. Our disconnector fuses are both finger-proof and touch-proof, promoting workplace safety.

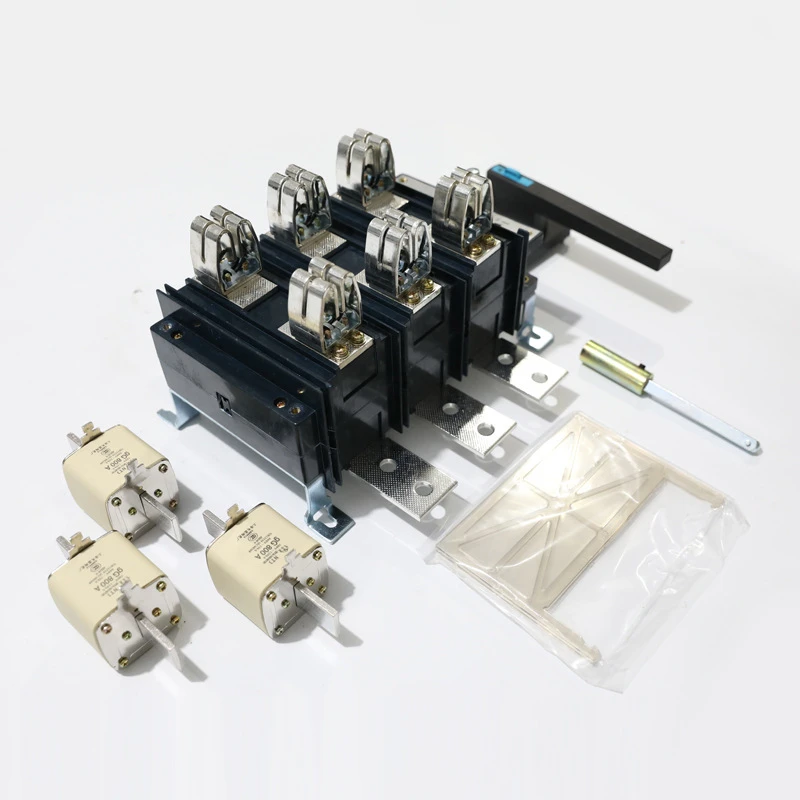

Built to Last in Extreme Conditions

Built to Last in Extreme Conditions

Durability defines every disconnector fuse we produce, making them ideal for applications in oil sands, chemical plants, and offshore platforms. Our temperature-proof materials withstand operating ranges from -40°C to +55°C, ensuring functionality in desert heat or arctic cold. In corrosive environments, options include stainless steel hardware and coated copper. Accelerated aging tests show our fuses maintain performance beyond 15 years when used within rated conditions. The use of high-grade, UV-stabilized thermoplastics prevents cracking under continuous sunlight exposure, a common issue in outdoor photovoltaic installations. Internationally, clients in Chile and South Africa have reported zero mechanical failures over three years in harsh solar fields. The robust polycarbonate covers can even resist impact up to IK08.
