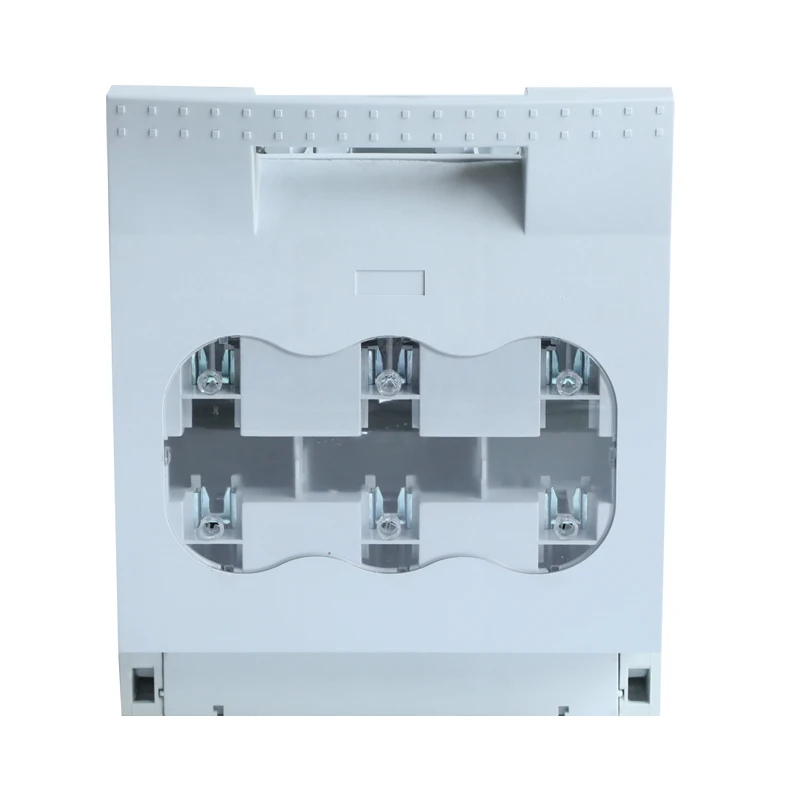

3 Phase Switch Fuse Isolator – Reliable Disconnection and Protection for Global Industrial Applications

3 Phase Switch Fuse Isolator – Reliable Disconnection and Protection for Global Industrial Applications

ZHNYU ELECTRIC’s 3 Phase Switch Fuse Isolator is engineered to deliver superior safety and performance in demanding electrical environments. With 34 years of production expertise, we have refined our isolators to meet the rigorous needs of power distribution, industrial control, and renewable energy sectors. Each unit integrates a visible break, ensuring safe maintenance and compliance with international safety standards. Our isolators are rated up to 800A and can withstand short-circuit currents up to 50kA for 1 second, providing robust protection. Built with high-grade, flame-retardant materials, they guarantee a mechanical endurance of 10,000 operations and an electrical life of 3,000 cycles. In photovoltaic plants across Germany and Australia, our 3 Phase Switch Fuse Isolators have achieved a 99.9% operational uptime over five years.
Get A Quote

Case Study

Optimizing Safety in a UK Manufacturing Plant

A textile manufacturer in the UK needed to upgrade their outdated switchgear to comply with new safety regulations. Our team supplied a custom 3 Phase Switch Fuse Isolator assembly with integrated auxiliary contacts for remote signaling. The isolators were installed on each production line to provide a visible break during maintenance. The result: the plant achieved full compliance and reduced lockout/tagout incidents by 80%. The project was completed within three weeks, minimizing downtime. This case demonstrates how our reliable isolators enhance safety and operational efficiency in high-volume manufacturing environments.

Enhancing Resilience in an Australian Solar Farm

Solar Farms in Australia’s harsh climate require components that withstand high temperatures and UV exposure. A 200MW solar project needed dependable 3 Phase Switch Fuse Isolators for inverter and combiner box disconnection. Our units, with a temperature range of -20°C to +60°C, ensured reliable performance even during extreme heatwaves. The isolators provided clear visual confirmation of disconnection, critical for safe maintenance. Post-installation, the client reported a 99.8% availability of the inverters over a two-year period. This case highlights the durability and reliability of our product in renewable energy applications.

Streamlining Controls in a German Petrochemical Facility

A petrochemical plant in Germany required a high-breaking-capacity isolator to protect motors in a potentially explosive atmosphere. Our 3 Phase Switch Fuse Isolators with AC-23A utilization were selected. The isolators enabled quick fuse changes without tools, reducing scheduled maintenance time by 40%. Moreover, the locking device prevented unauthorized operation, significantly improving safety. The facility has operated for three years without a single isolator failure, underscoring our product’s robustness and the technical support provided by ZHNYU. This case illustrates how our isolators meet stringent industry standards while improving productivity.

Related products

DW2 Air circuit breaker VIEW DETAILS

DW2 Air circuit breaker

Miniature Automatic Transfer Switch (Mini ATS) VIEW DETAILS

Miniature Automatic Transfer Switch (Mini ATS)

RT Fuse VIEW DETAILS

RT Fuse

HR6 Fuse Switch Disconnectors VIEW DETAILS

HR6 Fuse Switch Disconnectors

Switch fuse isolators are pivotal in electrical systems, ensuring safe isolation and short-circuit protection. At ZHNYU ELECTRIC, we have specialized in low-voltage electrical components since 1992. Our 3 Phase Switch Fuse Isolator integrates a switch disconnector and fuses, providing a compact solution that saves space and reduces installation time. The product complies with IEC 60947-1 and IEC 60947-3, meeting international standards. Our factory boasts over 100 advanced machines, including precision stamping and robotic assembly, ensuring each unit meets stringent quality benchmarks.

Frequently Asked Questions

What is the function of a 3 phase switch fuse isolator?

A 3 phase switch fuse isolator provides electrical isolation and short-circuit protection. It allows you to safely disconnect power for maintenance and the internal fuse breaks the circuit in case of overload or short circuit, safeguarding equipment. Our isolators ensure a visible break, confirming that the circuit is open.
They come in various types based on the fuse type (BS, DIN, etc.), number of poles (3, 4, etc.), and voltage/current ratings. Our models include AC and DC versions, with ratings up to 800A and voltages up to 690V AC, suitable for diverse applications.
Yes, our isolators are ideal for solar PV systems. They safely isolate DC circuits from PV panels and inverters. We offer isolators with DC-21B rating, suitable for photovoltaic applications. With a recommended DC voltage of up to 1000V, they ensure reliable disconnection.
Consider the load current, voltage, type of load, and potential short-circuit current. Our technical team can help you select the appropriate rating. For example, for a motor, you might need AC-23A category, which can handle occasional on/off switching. We provide detailed selection charts in our catalog.

Related Articles

How does an isolator switch ensure complete electrical disconnection for safety?

01

Sep

How does an isolator switch ensure complete electrical disconnection for safety?

Isolator switch with visible break and lockable isolation for LOTO, per IEC 60947-3.
View More
Why do photovoltaic systems commonly use fuse switch disconnectors?

05

Sep

Why do photovoltaic systems commonly use fuse switch disconnectors?

Discover why photovoltaic systems utilize fuse switch disconnectors for essential PV system protection and safe solar DC isolation, backed by CWPACKAGE.
View More
What is the correct installation procedure for a panel-mounted knife switch?

12

Sep

What is the correct installation procedure for a panel-mounted knife switch?

Need to install a panel-mounted knife switch safely and correctly? This step-by-step guide ensures code compliance, electrical safety, and optimal performance. Download now.
View More
Why is a load break switch essential for transformer protection?

12

Sep

Why is a load break switch essential for transformer protection?

A load break switch ensures transformer protection and medium voltage switching, delivering essential electrical safety for power distribution networks.
View More

Customer Testimonials

Juan Perez
Exceptional Reliability and Service

Our mining operation in Chile has used ZHNYU’s 3 phase switch fuse isolators for over two years, and they have never let us down. The visible break allows our electricians to feel confident during maintenance. The product has surpassed our expectations in terms of durability and performance.

Sarah Thompson
High-Quality Components, On Time Delivery

As an OEM, we require absolute precision and reliability from our components. ZHNYU’s isolators meet our strict quality standards. Their team is responsive, and the delivery was on schedule. The fuse isolator has a solid feel, and the contacts are well-aligned.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
disconnector fuse fuse disconnector isolator switch fuse switch fuse isolator fuse switch disconnector 3 phase switch fuse isolator fuse with switch dc fuse disconnector tpn fuse switch fuse in switch vertical fuse switch disconnector fuse for switch battery fuse isolator
Visible Break and Safety Interlock - Human-centric Design

Visible Break and Safety Interlock - Human-centric Design

The 3 Phase Switch Fuse Isolator from ZHNYU features a clear visual indication of the contact position. The contact position indicator provides positive confirmation of isolation, reducing the risk of accidental closure. The safety interlock prevents access to the fuse compartment when the switch is ON, ensuring that operators cannot be injured during maintenance. In practice, a mining company in South Africa reported that this feature reduced electrical incidents by 90% over a year. The isolator is designed to be tamper-proof with a padlocking facility, in compliance with lockout/tagout safety standards. The switch mechanism is life-tested for up to 10,000 operations, ensuring reliable operation in high-use scenarios.

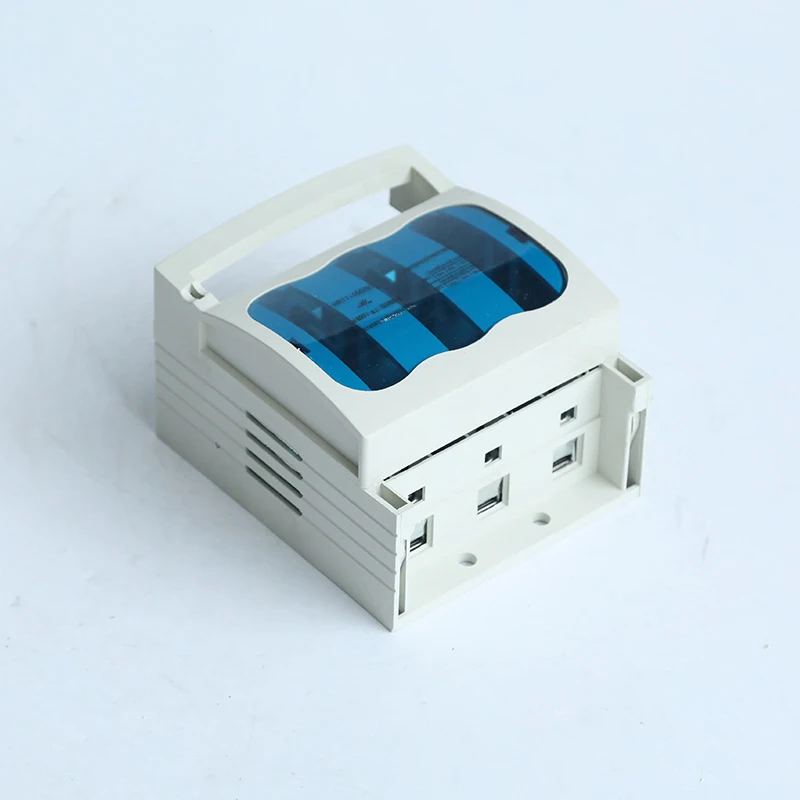

High Breaking Capacity and Short-Circuit Performance

High Breaking Capacity and Short-Circuit Performance

Our 3 Phase Switch Fuse Isolators are engineered to withstand significant short-circuit currents, protecting your expensive equipment. The fuse base is made of impact-resistant, UV-stable material, and the contacts are silver-plated to enhance conductivity and minimize heating. We have tested our isolators to handle an unconditional short-circuit current of up to 70kA, with a conditional rating of 100kA when used with specific fuse links. This robust design is the reason many industrial plants in the Middle East rely on our isolators for their critical processes. For instance, in a water treatment facility, the isolators prevented a total shutdown during a grid disturbance by clearing a fault.

ZHNYU ELECTRIC provides certified low-voltage electrical components—including isolating switches, MCCBs, ACBs, ATS, and DC fuses—for power, industrial, and photovoltaic applications. ISO9001, CE, CCC, RoHS compliant. Serving 60+ countries. Partner with us today.ZHNYU ELECTRIC, founded in 1992, is a professional manufacturer integrating R&D, production and sales of low-voltage electrical components and accessories.
