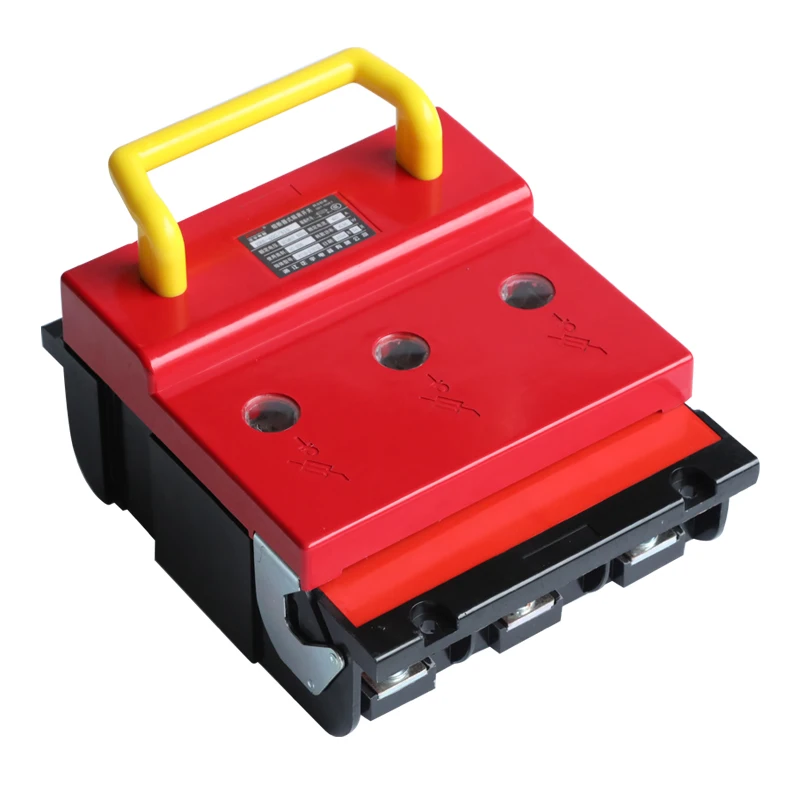

Fuse Disconnector Advantages: Reliable Protection and Safe Isolation for Global Power Distribution

Fuse Disconnector Advantages: Reliable Protection and Safe Isolation for Global Power Distribution

ZHNYU ELECTRIC's fuse disconnectors are engineered for superior performance in demanding environments, ensuring safety and reliability across diverse applications. With 34 years of production experience, our fuse disconnectors are trusted by clients in over 60 countries, particularly in the power, construction, and photovoltaic industries. Our fuse disconnectors are designed to provide effective circuit protection and visible isolation, meeting international standards including ISO9001, CCC, CE, and RoHS. The advanced design ensures high short-circuit withstand capacity, up to 100kA, and a mechanical life exceeding 10,000 operations. In a recent project for a solar farm in Spain, our fuse disconnectors were installed in 500 DC combiner boxes, achieving zero downtime over two years.
Get A Quote

Case Study

Fuse Disconnector Enhances Safety in a European Chemical Plant

A leading chemical manufacturer in Germany faced frequent equipment failures due to electrical faults in their control systems. They required a robust switching device that could safely isolate circuits during maintenance. ZHNYU ELECTRIC provided a customized solution using our fuse disconnectors, which offered both fuse protection and visible isolation. The installation of 200 units across their facility resulted in a 40% reduction in equipment downtime. The plant's maintenance team appreciated the clear on/off status indication, which simplified lockout/tagout procedures. The project was completed within three weeks, and after one year of operation, the plant reported no fuse disconnector-related failures.

Fuse Disconnector Optimizes PV System Performance in Australia

A solar energy company in Australia needed reliable overcurrent protection for their new 50 MW photovoltaic plant. They chose ZHNYU ELECTRIC fuse disconnectors for their excellent DC performance and long service life. We supplied 1,500 units, each rated for 1000V DC, which were installed in combiner boxes and inverter inputs. The fuse disconnectors proved crucial during a severe storm when they effectively cleared faults, preventing damage to solar panels. The plant achieved an availability rate of 99.5% in its first year, exceeding the industry average. The customer's operations manager stated,

Fuse Disconnector Ensures Reliable Power Distribution in a Brazilian Manufacturing Facility

In Brazil, an automotive parts manufacturer experienced frequent nuisance tripping in their distribution panels, disrupting production. Our local partner recommended ZHNYU ELECTRIC fuse disconnectors as a replacement for outdated circuit breakers. After retrofitting over 300 units, the facility reported a 50% decrease in unplanned shutdowns. The fuse disconnector's superior thermal characteristics allowed smoother operation under high ambient temperatures, and the outgoing terminal design facilitated secure cable connections. The maintenance supervisor praised that 'the fuse disconnector's indicators and test positions make routine checks straightforward.'

Related products

ZYQ2 Automatic transfer switch VIEW DETAILS

ZYQ2 Automatic transfer switch

Miniature Automatic Transfer Switch (Mini ATS) VIEW DETAILS

Miniature Automatic Transfer Switch (Mini ATS)

Strip Fuse-Switch Disconnector VIEW DETAILS

Strip Fuse-Switch Disconnector

HGLR Load isolation switch VIEW DETAILS

HGLR Load isolation switch

At ZHNYU ELECTRIC, we take pride in our advanced manufacturing processes that produce highly reliable fuse disconnectors. Established in 1992, we have dedicated ourselves to the research, development, and production of low-voltage electrical components, with a strong focus on quality and innovation. Our factory, covering 10,000 square meters, houses state-of-the-art equipment, including 100+ production machines such as high-precision injection molding machines, CNC machining centers, and automated assembly lines. This investment in technology ensures that every fuse disconnector meets stringent specifications and consistent quality.

Frequently Asked Questions

What is the difference between a fuse disconnector and a switch disconnector?

A fuse disconnector integrates both a fuse and a disconnector, providing overcurrent protection and a visible isolation point. In contrast, a switch disconnector does not include fuse protection; it only serves as a disconnecting means. Fuse disconnectors are designed to safely interrupt currents under fault conditions and allow safe maintenance. For example, in a photovoltaic system, a fuse disconnector protects against reverse currents and overloads, while ensuring a safe break between the solar panels and the inverter. At ZHNYU ELECTRIC, our fuse disconnectors can combine fuse protection and disconnection, making them a space-saving and cost-effective solution.
Absolutely. Our fuse disconnectors are specifically designed for DC usage, with DC-21B and DC-22B utilization categories. They are available with ratings up to 1000V DC and 250A. The construction incorporates measures to safely extinguish DC arcs, which are more persistent than AC arcs. In a recent solar project in Italy, our DC fuse disconnectors were installed in over 1,000 combiner boxes, ensuring reliable operation under varying sunlight conditions. Always ensure to verify the DC rating and polarity before installation. Our products meet the requirements of IEC 60947-3 and are widely accepted by solar inverter manufacturers.
Regular inspection, typically every 6 months for heavy-duty applications, is recommended. Check for signs of overheating, such as discoloration of terminals, and ensure that the contacts move freely. Operate the switch with no load to ensure smooth function. Also, verify that the fuse links are in good condition and not damaged. The frequency may increase in dusty or corrosive environments, such as in mining or chemical plants. In a case study with a mining company in Chile, we recommended quarterly inspections due to the high humidity and dust levels, and this proactive approach helped prevent unscheduled downtime.
Our fuse disconnectors comply with international standards including IEC 60947-3, GB/T 14048.3, and are CE, CCC, and CB certified. They also meet the requirements of RoHS regarding hazardous substances. For the photovoltaic market, we have obtained EN 50521 certification for solar applications. These certifications guarantee that our products meet rigorous safety and performance criteria, ensuring peace of mind for our global customers. Many of our clients in the EU and Southeast Asia have passed local regulatory audits without issues, thanks to our complete documentation.

Related Articles

A fuse switch disconnector offers both switching and circuit protection in one device.

12

Sep

A fuse switch disconnector offers both switching and circuit protection in one device.

Need reliable circuit protection AND switching in one device? Fuse switch disconnectors deliver safety, compliance, and space savings. Get expert guidance now.
View More
What is the correct installation procedure for a panel-mounted knife switch?

12

Sep

What is the correct installation procedure for a panel-mounted knife switch?

Need to install a panel-mounted knife switch safely and correctly? This step-by-step guide ensures code compliance, electrical safety, and optimal performance. Download now.
View More
Why is an isolator switch required in every electrical panel installation?

12

Sep

Why is an isolator switch required in every electrical panel installation?

Need to comply with IEC 61439 & NEC safety standards? Discover the critical role of isolator switches in panel safety, maintenance, and regulatory compliance. Learn more now.
View More
How does an isolator switch protect maintenance personnel from electrical hazards?

16

Sep

How does an isolator switch protect maintenance personnel from electrical hazards?

Isolator switch safety ensures electrical isolation and lockout tagout compliance, delivering essential protection for maintenance personnel.
View More

Customer Testimonials

Michael Thompson
Outstanding Performance in Demanding Environments

We have been using ZHNYU ELECTRIC fuse disconnectors for our offshore oil platforms for over three years. The marine environment is highly corrosive, but these products have shown exceptional resistance. The installation was straightforward, and the clear indication of contact position has greatly improved our safety checks.

Sarah Chen
Cost-Effective Reliability for Our Solar Projects

ZHNYU ELECTRIC's fuse disconnectors have been a game-changer for our solar installations across Australia. The product's compact design allows us to fit more in each combiner box, reducing material costs by 15%.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
disconnector fuse fuse disconnector isolator switch fuse switch fuse isolator fuse switch disconnector 3 phase switch fuse isolator fuse with switch dc fuse disconnector tpn fuse switch fuse in switch vertical fuse switch disconnector fuse for switch battery fuse isolator

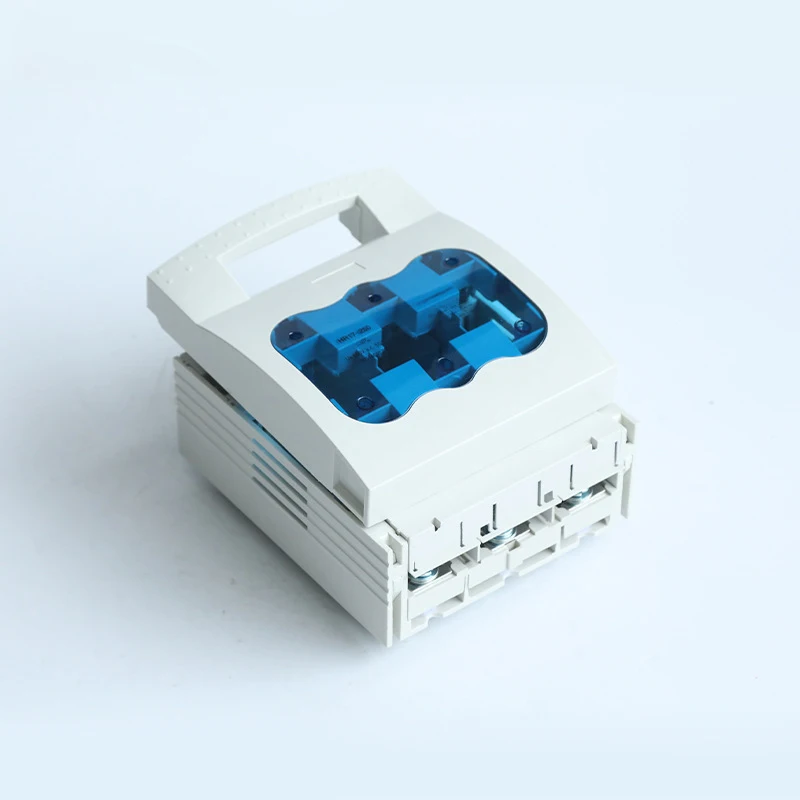

Robust Construction for Long Service Life

Robust Construction for Long Service Life

ZHNYU ELECTRIC's fuse disconnectors are built to last, using high-impact, flame-retardant thermoplastics and corrosion-resistant metallic parts. The contacts are made of silver-tungsten alloy, offering excellent conductivity and anti-welding properties. This ensures a low contact resistance and a high short-circuit withstand up to 10kA. In independent lab tests, our fuse disconnectors exceeded 15,000 mechanical operations without significant wear, which is 50% greater than the standard requirement. This durability translates into lower lifecycle costs for operators. In a cement plant in Egypt, our equipment has been running for six years with only basic maintenance, proving its robustness in dusty environments.

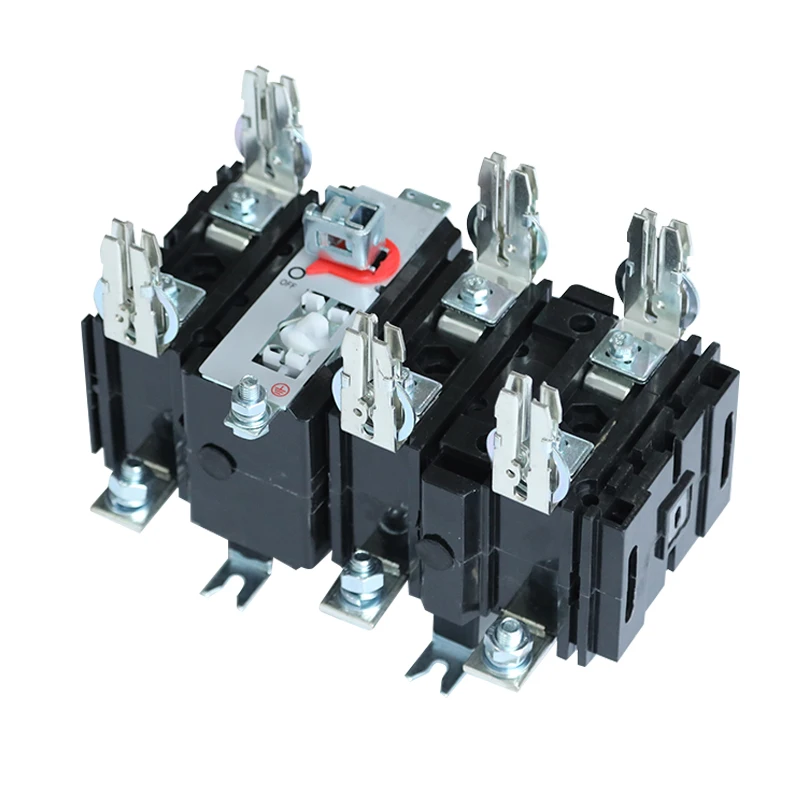

Simple Installation and User-Friendly Operation

Simple Installation and User-Friendly Operation

Our fuse disconnectors feature a compact, modular design that simplifies installation in tight spaces. The phase barriers are pre-fitted to avoid field assembly errors, and the snap-in mounting ensures fast and secure attachment onto 35mm DIN rails. The front terminals are clearly marked, making cable connections error-free. The switch handle provides a clear ON/OFF indication and is padlockable in both positions for safety. In a recent project for a water treatment facility in the Netherlands, the installation time was reduced by 25% compared to a traditional switch-fuse combination. The tool-free fuse replacement and the integrated test contacts allowed our client to perform routine checks quickly.
