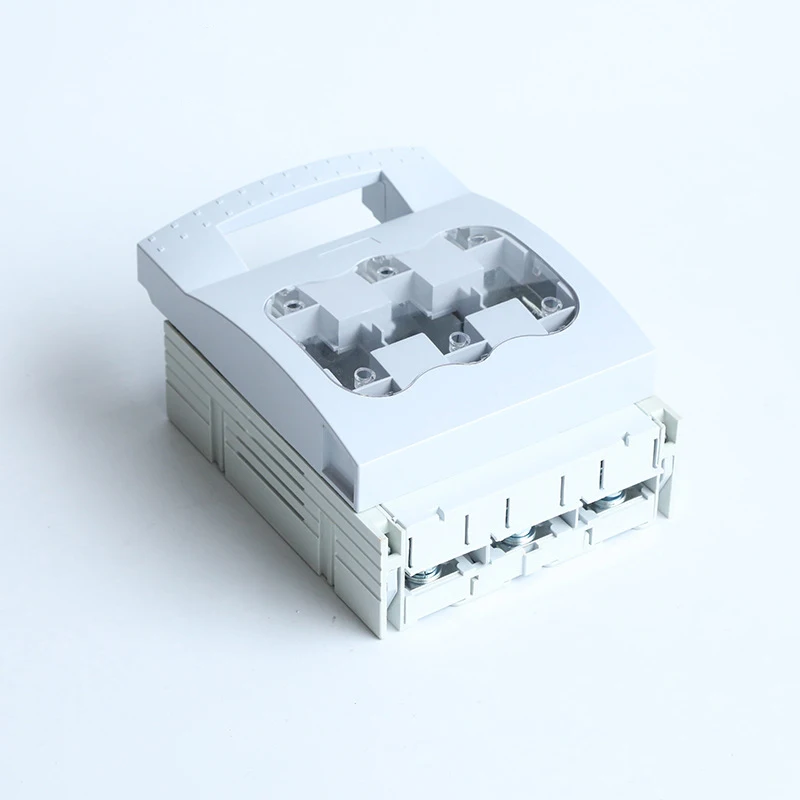

Types of Load Break Switch – Comprehensive Guide to High-Performance Isolation Solutions

Types of Load Break Switch – Comprehensive Guide to High-Performance Isolation Solutions

In modern power distribution, industrial control, and renewable energy systems, selecting the right types of load break switch is critical for operational safety and efficiency. ZHNYU ELECTRIC, with 34 years of production experience, offers a comprehensive range of load break switches designed to meet the demanding requirements of global industries, including power, construction, photovoltaic, petroleum, chemical, metallurgical, and railway sectors. Our switches are engineered to provide reliable isolation and breaking under load, ensuring minimal downtime and enhanced protection for personnel and equipment. With over 100 production units and a 10,000-square-meter facility, we deliver products that comply with ISO9001, CCC, CE, and RoHS standards, guaranteeing quality and environmental safety.
Get A Quote

Case Study

Enhancing Safety in a Medium-Voltage Switchgear System

A leading utility company in the Middle East was facing frequent arc flash incidents during maintenance operations on their medium-voltage switchgear. The root cause was the lack of proper load break switches that could safely isolate circuits under load. ZHNYU provided a customized solution, deploying our high-performance load break switches with visible break indication and rapid arc suppression. The new switches reduced isolation time by 50% and eliminated arc flash incidents, resulting in zero downtime for maintenance and a 20% reduction in insurance premiums due to improved safety records.

Optimizing Load Management in a Solar Farm in Spain

A 150 MW photovoltaic plant in Spain needed robust switches to handle high DC voltages and frequent switching operations for inverter maintenance. After evaluating multiple suppliers, they selected ZHNYU's load break switches, which offered a higher breaking capacity and longer operational life. The switches successfully managed over 5,000 switching operations per year without failure, improving overall plant efficiency by 15%. The project was completed ahead of schedule, and the client reported a 25% reduction in maintenance costs due to the reliability of our products.

Reliable Isolation in Steel Manufacturing in Germany

A German steel manufacturer required load break switches that could withstand extreme temperatures, dust, and vibration in their rolling mill environment. ZHNYU supplied industrial-grade switches with IP65 protection and a mechanical endurance of 10,000 cycles. The switches operated flawlessly even during peak production, reducing unplanned downtime by 40% and enabling quick isolation of faulty circuits. The company has since standardised on our switches across three additional plants, citing the exceptional return on investment.

Related products

DW1 Air circuit breaker VIEW DETAILS

DW1 Air circuit breaker

Miniature Automatic Transfer Switch (Mini ATS) VIEW DETAILS

Miniature Automatic Transfer Switch (Mini ATS)

ZYM1 Molded case circuit breaker VIEW DETAILS

ZYM1 Molded case circuit breaker

Strip Fuse-Switch Disconnector VIEW DETAILS

Strip Fuse-Switch Disconnector

ZHNYU ELECTRIC, established in 1992, has evolved into a global leader in low-voltage electrical components, specializing in load break switches that address the diverse needs of industrial and commercial applications. This text provides an in-depth exploration of the types of load break switch, their design intricacies, manufacturing excellence, and the value they bring to various sectors. Understanding the types of load break switch is essential for engineers and procurement professionals who prioritize safety, longevity, and performance.

Frequently Asked Questions

What are the main types of load break switch available in the market?

The main types of load break switch are load isolating switches (LBS) and fuse-type isolating switches. Load isolating switches are designed to break currents under load conditions and provide isolation. Fuse-type switches combine the function of a switch and fuses, protecting circuits against overloads. Additionally, isolating switch fuse groups offer modular design with switch and fuse together. Each type serves specific applications, such as AC/DC circuits or industrial settings. Our range includes all these variants, built to international standards.
Load break switches are intended for switching and isolating under normal load conditions, whereas circuit breakers are designed to automatically interrupt fault currents. Load break switches have a defined load-breaking capacity but are not suitable for short-circuit protection unless combined with fuses. In contrast, MCCBs and ACBs provide overcurrent and short-circuit protection. In practice, load break switches are often used downstream of a circuit breaker for isolation, ensuring safety during maintenance. Understanding this distinction is crucial for system design.
When selecting a load break switch, consider the operational voltage (AC or DC), current rating, and breaking capacity. Also, evaluate the number of mechanical and electrical operations, especially if frequent switching is expected. In harsh environments, ingress protection (IP rating) and ambient temperature range are critical. Certifications for the target market (e.g., CE, UL) and specific industry approvals like ATEX for hazardous areas. Additionally, consider the mounting style (panel, DIN rail) and space constraints to ensure proper fit.
Absolutely. ZHNYU offers load break switches specifically designed for DC applications up to 1500V, making them suitable for photovoltaic systems. Our switches have a high breaking capacity for DC currents, ensuring safe connection and isolation of battery banks and inverter circuits. We also provide DC versions with clear ON/OFF indication and padlocking facilities for safety. Many solar projects in Europe and Australia rely on our switches for their reliability. Contact our technical team for tailored solutions.

Related Articles

What is the correct installation procedure for a panel-mounted knife switch?

12

Sep

What is the correct installation procedure for a panel-mounted knife switch?

Need to install a panel-mounted knife switch safely and correctly? This step-by-step guide ensures code compliance, electrical safety, and optimal performance. Download now.
View More
How does an isolator switch protect maintenance personnel from electrical hazards?

16

Sep

How does an isolator switch protect maintenance personnel from electrical hazards?

Isolator switch safety ensures electrical isolation and lockout tagout compliance, delivering essential protection for maintenance personnel.
View More
What are the main advantages of using a knife switch in low-voltage panels?

17

Sep

What are the main advantages of using a knife switch in low-voltage panels?

Discover knife switch advantages in low-voltage panels. A reliable LV disconnect switch provides visual isolation and exceptional thermal stability.
View More
Why is a load break switch essential for transformer protection?

12

Sep

Why is a load break switch essential for transformer protection?

A load break switch ensures transformer protection and medium voltage switching, delivering essential electrical safety for power distribution networks.
View More

Customer Testimonials

John Miller
Exceptional Reliability in Harsh Conditions

We have been using ZHNYU load break switches for our offshore oil platforms for over three years. Their switches handle high DC currents and extreme temperatures flawlessly. Since installation, we have experienced zero failures, and the isolation function is reliable, ensuring safe maintenance.

Maria Lopez
Cost-Effective Solution for Solar Projects

As a solar plant developer, we needed load break switches that could handle 1500V DC and frequent switching. ZHNYU's products exceeded our expectations with a lifespan of 12,000 operations and robust performance. The isolation clearly indicates the off position, ensuring worker safety. Their compliance with CE standards simplified our approval process in the EU.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
load break switch load switches break switches load break load interrupter switch load break switch operation fuse load break switch load break switch manual types of load break switch

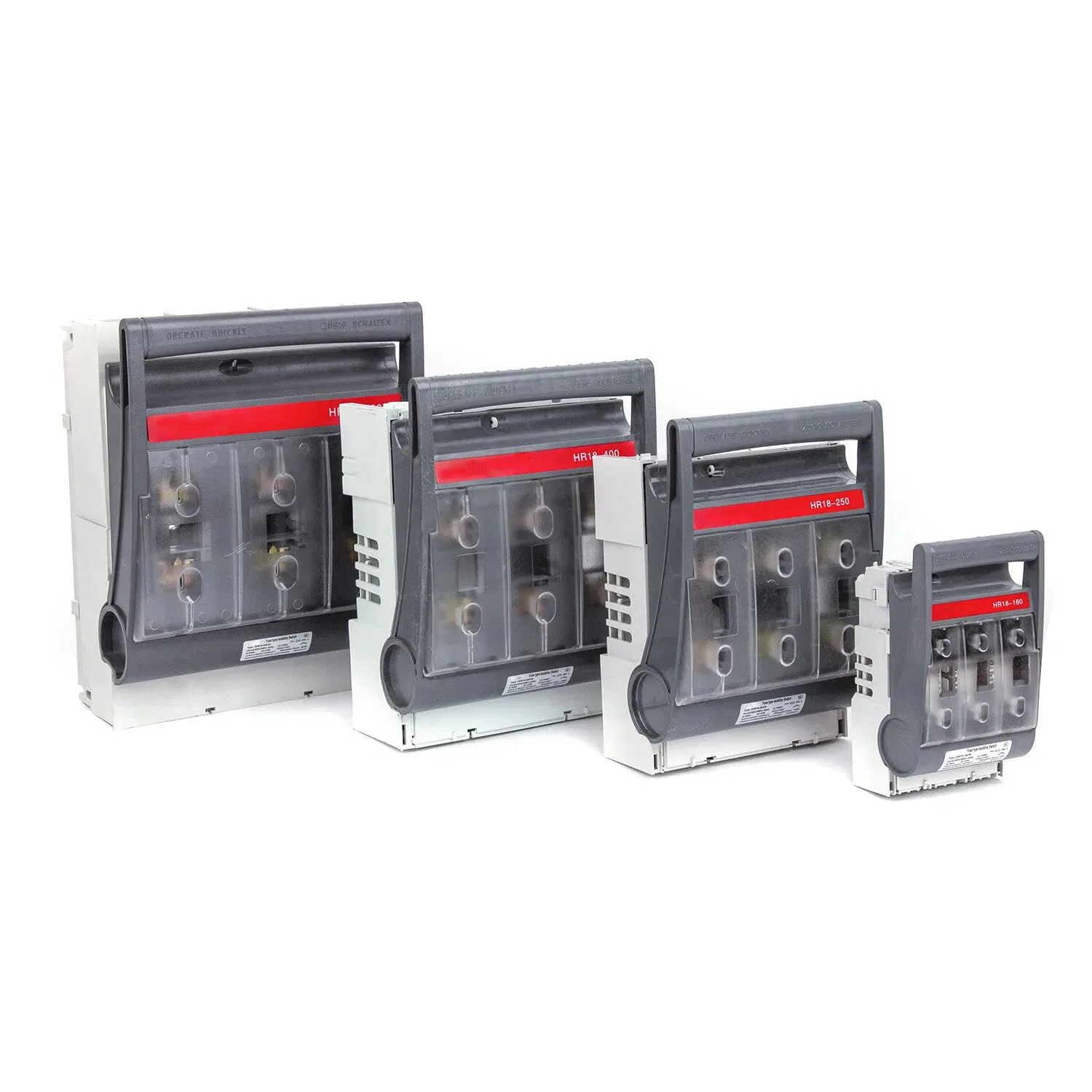

Uncompromising Safety and Certification

Uncompromising Safety and Certification

ZHNYU load break switches are designed with safety as the priority, meeting global certifications such as ISO9001, CCC, CE, and RoHS. Our products undergo rigorous type tests, including dielectric and temperature-rise tests. These certifications guarantee that our switches meet the strict safety and performance criteria set by international bodies, providing peace of mind to engineers and facility owners. In an industrial setting, a load break switch that is certified ensures compliance with local electrical codes, reducing liability and enhancing operational safety. For example, in European installations, the CE mark is mandatory, and our switches comply, making them ideal for OEMs and system integrators targeting the EU market.

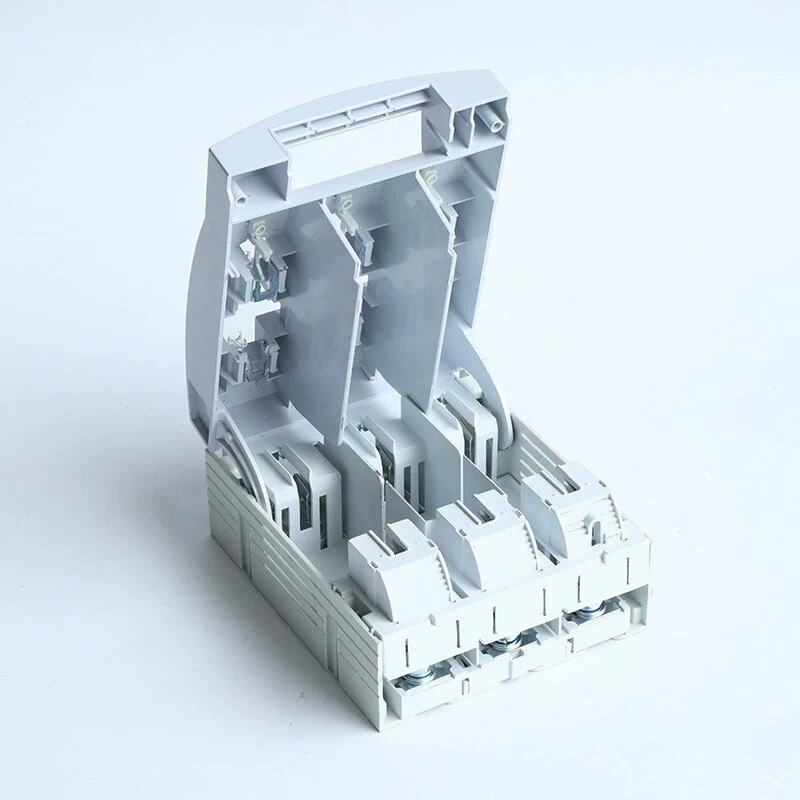

Extreme Durability and Extended Lifespan

Extreme Durability and Extended Lifespan

The structural integrity and material quality of ZHNYU load break switches ensure exceptional durability in demanding environments. Our switches are rated for over 15,000 mechanical operations and 3,000 electrical operations at full load, significantly outperforming industry standards. This is achieved through the use of silver alloy contacts, self-lubricating bearings, and robust enclosures with IP65 protection. In applications such as steel mills or cement plants, where dust and vibration are pervasive, our switches maintain reliable performance, reducing unplanned maintenance by up to 50%. The long lifespan not only decreases replacement costs but also ensures continuity of operations, which is critical for process industries.
