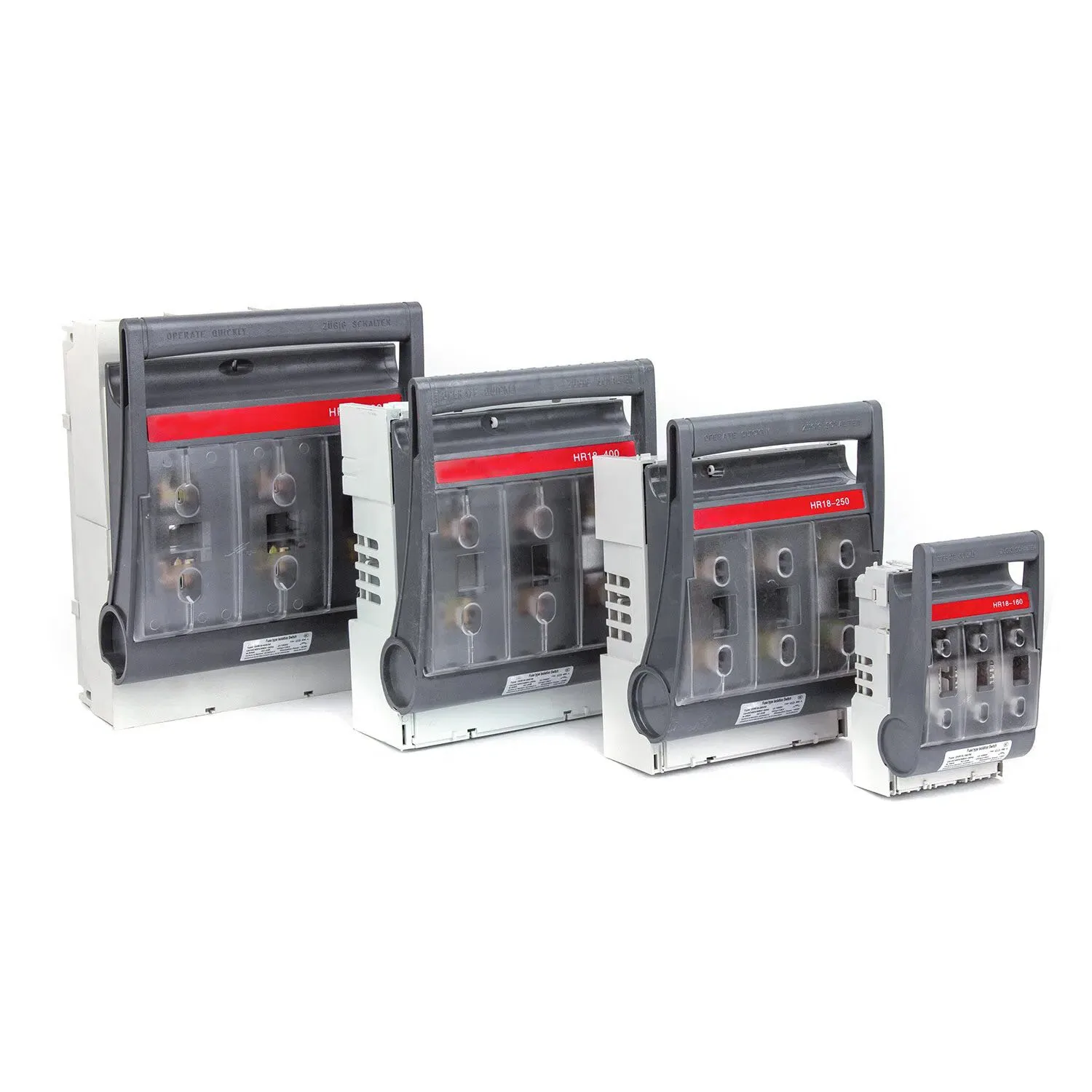

Load Break Switch Operation Guide

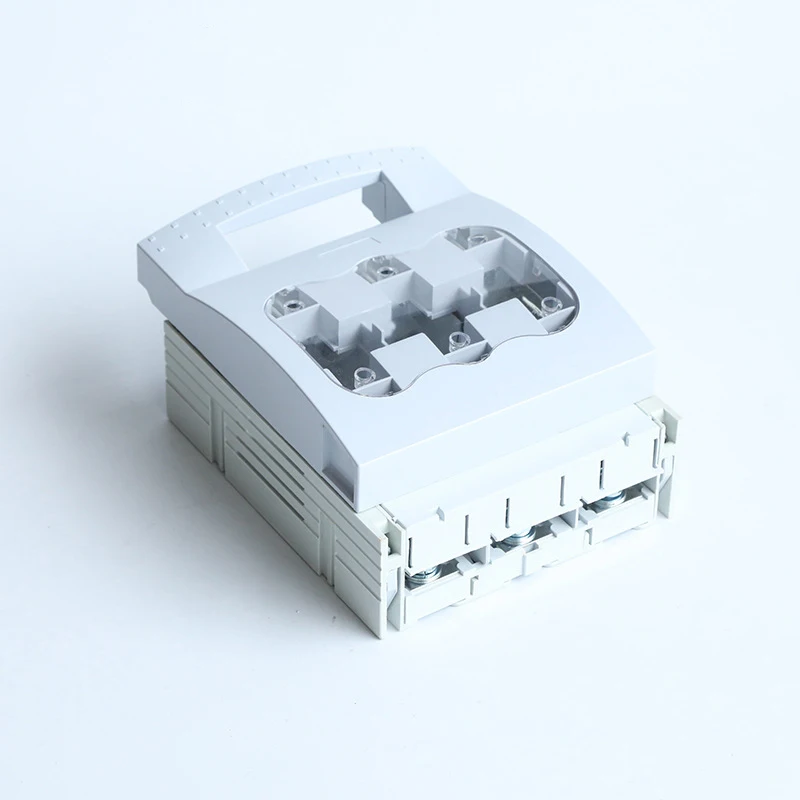

ZHNYU’s load break switches are engineered with a focus on precision and reliability to ensure optimal load break switch operation in any environment. We use state-of-the-art CNC machining to manufacture components with micrometer tolerances, reducing friction and wear, and ensuring consistent contact pressure. Our switches feature a unique double-break contact design that significantly minimizes the duration of the arc during switching, which extends contact life and reduces maintenance needs. Each switch is rated for over 10,000 mechanical operations and has a mechanical life that exceeds 15,000 tests, as verified in our high-accuracy test rigs. The operation mechanism is designed to provide a clear tactile feel and audible 'click' when the switch is fully closed or open, eliminating guesswork for operators.

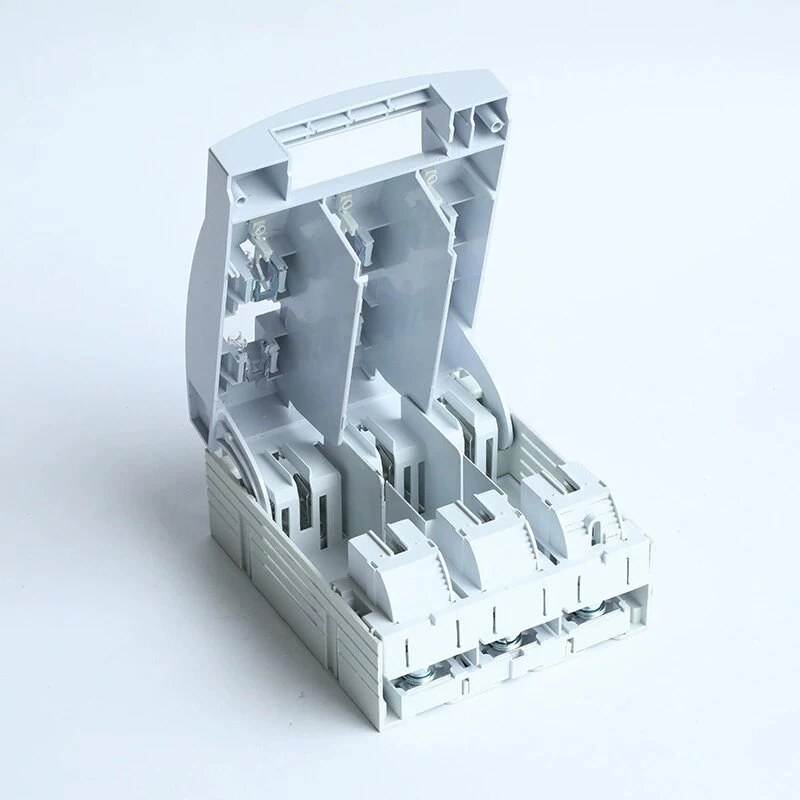

In demanding industrial applications, load break switches must withstand extraordinary thermal and dynamic stresses. ZHNYU manufactures switches with a high short-time withstand current rating up to 25kA for 1 second, ensuring they can handle transient faults without damage. We achieve this through robust construction materials, such as glass-reinforced polyamide housings and silver-plated contacts that resist welding. Our switches also feature an innovative arc-quenching chamber, which quickly cools and extinguishes the arc, reducing contact erosion by up to 40%. This means that even in applications with frequent load switching, such as motor control centers or EV charging networks, our switches maintain excellent conductivity over their lifespan.
