Fused Isolator Switch: Ensuring Safety and Reliability in Power Distribution

Fused Isolator Switch: Ensuring Safety and Reliability in Power Distribution

In the realm of low-voltage electrical distribution, the fused isolator switch stands as a critical component for ensuring circuit protection and operational safety. ZHNYU ELECTRIC, with over three decades of expertise, offers a comprehensive range of fused isolator switches engineered to meet the rigorous demands of global industries including power, construction, photovoltaic, petroleum, chemical, metallurgical, and railway sectors. These switches seamlessly integrate switching and fuse protection, providing a compact solution that safeguards equipment and personnel. Our fused isolator switches are designed to handle rated currents from 63A to 1250A, with breaking capacities up to 100kA, catering to diverse application needs.
Get A Quote

Case Study

Enhancing Safety in a 50MW Solar Farm

A leading solar energy developer in Spain faced frequent equipment failures due to inadequate isolation and overcurrent protection in their DC combiner boxes. They integrated ZHNYU ELECTRIC's fused isolator switches rated at 1000V DC and 250A into their system. The switch's integrated fuse mechanism offered rapid response to overcurrents, preventing cascade failures. Within six months, unplanned maintenance events dropped by 40%, and system availability increased from 95% to 98.5%. The visible break feature allowed technicians to safely perform maintenance with zero incidents. The project owner praised the switch's robust construction and ease of installation, which streamlined their operations and reduced total cost of ownership by 15%.

Reliable Protection in a Steel Manufacturing Plant

A steel plant in India needed a robust switching solution for their motor control centers, which operated in a dusty and high-temperature environment. Their previous isolators had frequent contact failures and lacked overcurrent protection, leading to motor burnouts and costly downtime. By deploying ZHNYU ELECTRIC's fused isolator switches rated at 630A and 690V, they achieved a 25% reduction in downtime. The switch's IP65 enclosure protected against dust and moisture, and the fuse provided instantaneous protection, reducing motor damage incidents by 60%. Over a year, the plant saved over $200,000 in maintenance and replacement costs. The plant's electrical supervisor noted that the switches' clear visual indication of fuse status improved troubleshooting speed significantly.

Compact Solution for Commercial Building Renovation

A large commercial complex in Dubai required upgrading its electrical distribution to comply with new fire safety regulations. Space was limited, and existing isolation and protection devices were bulky. ZHNYU ELECTRIC provided modular fused isolator switches that offered both isolation and protection in a single unit, saving 30% of the space compared to separate components. The project was completed two weeks ahead of schedule. The installation team appreciated the straightforward wiring and the switch's compatibility with standard rail mounting. The building manager reported zero power outages post-installation and praised the switches' consistent performance under high ambient temperatures. The project has been highlighted as a model for retrofitting older buildings with modern safety equipment.

Related products

ZYQ2 Automatic transfer switch VIEW DETAILS

ZYQ2 Automatic transfer switch

ZYM1L Molded case circuit breaker VIEW DETAILS

ZYM1L Molded case circuit breaker

Strip Fuse-Switch Disconnector VIEW DETAILS

Strip Fuse-Switch Disconnector

HGLR Load isolation switch VIEW DETAILS

HGLR Load isolation switch

At ZHNYU ELECTRIC, our mastery in manufacturing fused isolator switches stems from 34 years of dedicated innovation in low-voltage electrical components. Our production process begins with the selection of high-grade materials: silver alloy contacts for superior conductivity and durability, and flame-retardant thermosetting plastics that ensure thermal stability and electrical insulation. Each component undergoes precision stamping and molding, followed by robotic assembly to minimize human error.

Frequently Asked Questions

What is the primary function of a fused isolator switch?

A fused isolator switch combines the functions of an electrical isolator and a fuse. It allows you to safely disconnect power for maintenance while simultaneously providing overcurrent and short-circuit protection. This is achieved by integrating fuse links within the switch body, which break the circuit in the event of excessive current, thereby protecting equipment and reducing the risk of fire.
Our fused isolator switches are certified to ISO9001, CCC (China Compulsory Certification), and CE (Conformité Européenne). We strictly comply with RoHS (Restriction of Hazardous Substances) directives, ensuring our products are free from hazardous materials.
Selection involves considering several factors: operating voltage, rated current, fault current capability, and environmental conditions. First, determine the system's nominal voltage and expected load current to choose a switch with an appropriate current rating (we offer ranges from 32A to 1250A). Next, assess the prospective short-circuit current to ensure the switch's breaking capacity (up to 100kA) is sufficient. Also, consider the ambient temperature and enclosure requirements; our switches operate from -25°C to +55°C and offer IP65 protection.
Regular maintenance is crucial for longevity and safe operation. We recommend quarterly visual inspections to check for signs of wear, overheating, or damage. Ensure that the fuse links are not blown and that the switch's moving contacts are clean and properly lubricated. The operating mechanism should be tested periodically to confirm smooth operation. In dusty or corrosive environments, more frequent cleaning may be needed. Always follow manufacturer's guidelines and disconnect power before servicing.

Related Articles

The Fuse: The Unsung Hero of Circuit Protection

31

Aug

The Fuse: The Unsung Hero of Circuit Protection

View More
What is the correct installation procedure for a panel-mounted knife switch?

12

Sep

What is the correct installation procedure for a panel-mounted knife switch?

Need to install a panel-mounted knife switch safely and correctly? This step-by-step guide ensures code compliance, electrical safety, and optimal performance. Download now.
View More
Why is an isolator switch required in every electrical panel installation?

12

Sep

Why is an isolator switch required in every electrical panel installation?

Need to comply with IEC 61439 & NEC safety standards? Discover the critical role of isolator switches in panel safety, maintenance, and regulatory compliance. Learn more now.
View More
What are the main advantages of using a knife switch in low-voltage panels?

17

Sep

What are the main advantages of using a knife switch in low-voltage panels?

Discover knife switch advantages in low-voltage panels. A reliable LV disconnect switch provides visual isolation and exceptional thermal stability.
View More

Customer Testimonials

David Thompson, Electrical Maintenance Manager, mining company in Australia.
Exceptional Performance in Harsh Environments

We have been using ZHNYU ELECTRIC's fused isolator switches in our mining operations in Western Australia for over two years. The switches have performed flawlessly, even under extreme dust and heat conditions. Since switching to their product, we've seen a 40% reduction in electrical failures, and the integrated fuse protection has saved us thousands in equipment replacement costs. The visible break feature is a huge safety benefit, and our maintenance team appreciates the straightforward inspection. I highly recommend these switches for any heavy industry.

Maria Gonzalez, Electrical Contractor, GreenBuild Contracting LLC, UAE.
Reliable Solution for Commercial Complexes

As an electrical contractor in Dubai, I have standardized on ZHNYU ELECTRIC's fused isolator switches for all our commercial projects. The switch's compact design and easy installation have significantly improved our project timelines. Their after-sales support is exceptional, providing prompt technical assistance whenever needed. Over the past three years, we have installed over 500 units across various developments, and we have experienced zero failures. This reliability has enhanced our reputation, and we plan to continue using their products for future projects.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
electrical isolator electrical isolator switch dc isolator switch rotary isolator ac isolator switch ac isolator fused isolator outdoor isolator switch china isolator supplier china isolator manufacturer
Advanced Safety Features for Total Protection

Advanced Safety Features for Total Protection

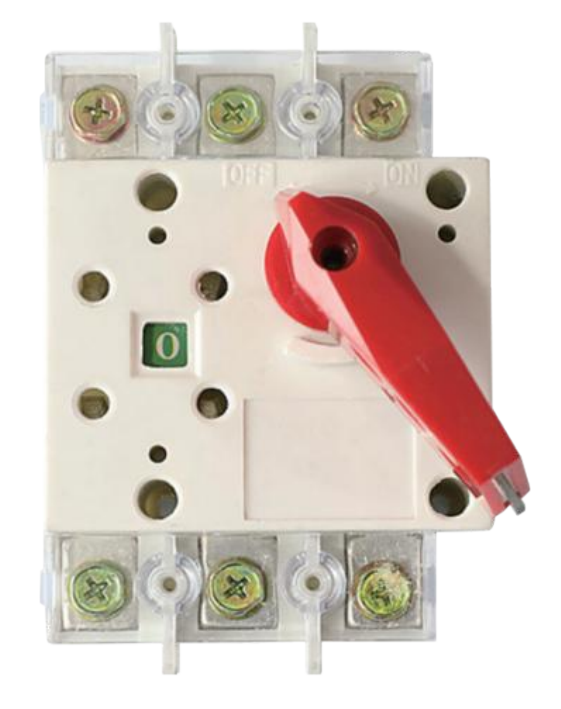

The fused isolator switch from ZHNYU ELECTRIC is engineered with cutting-edge safety features that prioritize both user protection and equipment integrity. At its core, the switch employs a fuse system that provides rapid clearing of overcurrents, dramatically reducing the risk of electrical fires and damage. The fuse's high breaking capacity, up to 100kA, ensures that even extreme fault conditions are handled with ease. Additionally, the switch features an interlocked door mechanism that prevents accidental contact with live parts during operation. The clear visible break not only facilitates safe maintenance but also verifies circuit isolation. Unitized operating mechanism ensures consistent switching action, while the off-position locking capability secures the circuit during maintenance.
Robust Design for Longevity in Industrial Environments

Robust Design for Longevity in Industrial Environments

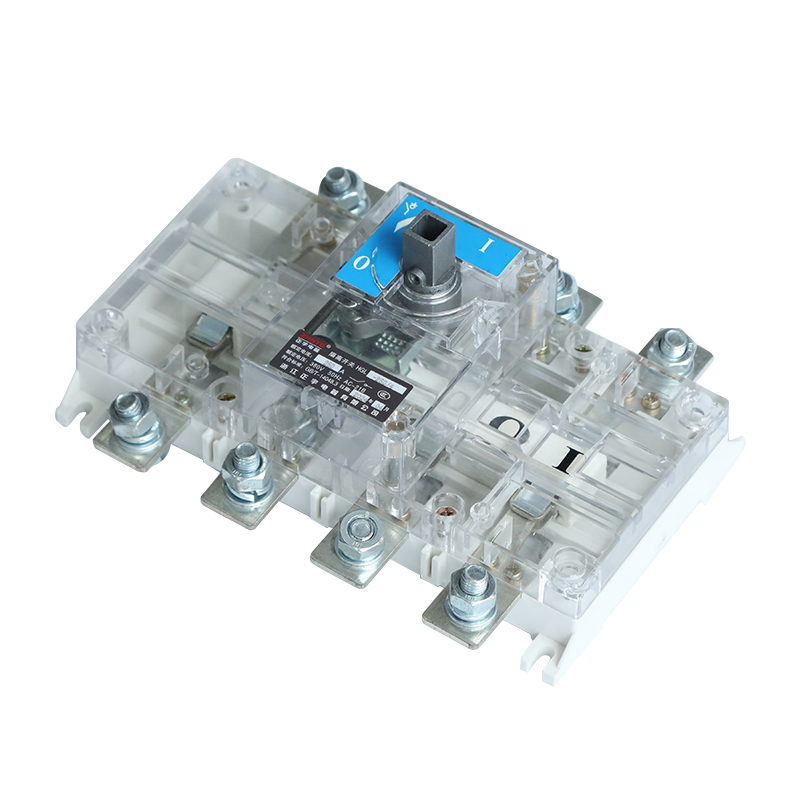

ZHNYU ELECTRIC's fused isolator switches are constructed to withstand the harshest industrial environments, ensuring long-term durability and consistent performance. The switch housing is made of glass-fiber reinforced polyamide, which provides exceptional mechanical strength and resistance to corrosion, UV radiation, and flame. This material is self-extinguishing and rated at UL94 V-0, offering superior fire resistance. The contacts are made from silver alloy, which maintains low resistance and excellent conductivity even after thousands of operations. The entire assembly is sealed to IP65, protecting against dust ingress and water jets, making it ideal for outdoor installations, washdown areas, and chemical plants. Rigorous testing includes exposure to salt spray for 500 hours, ensuring performance in coastal locales.
