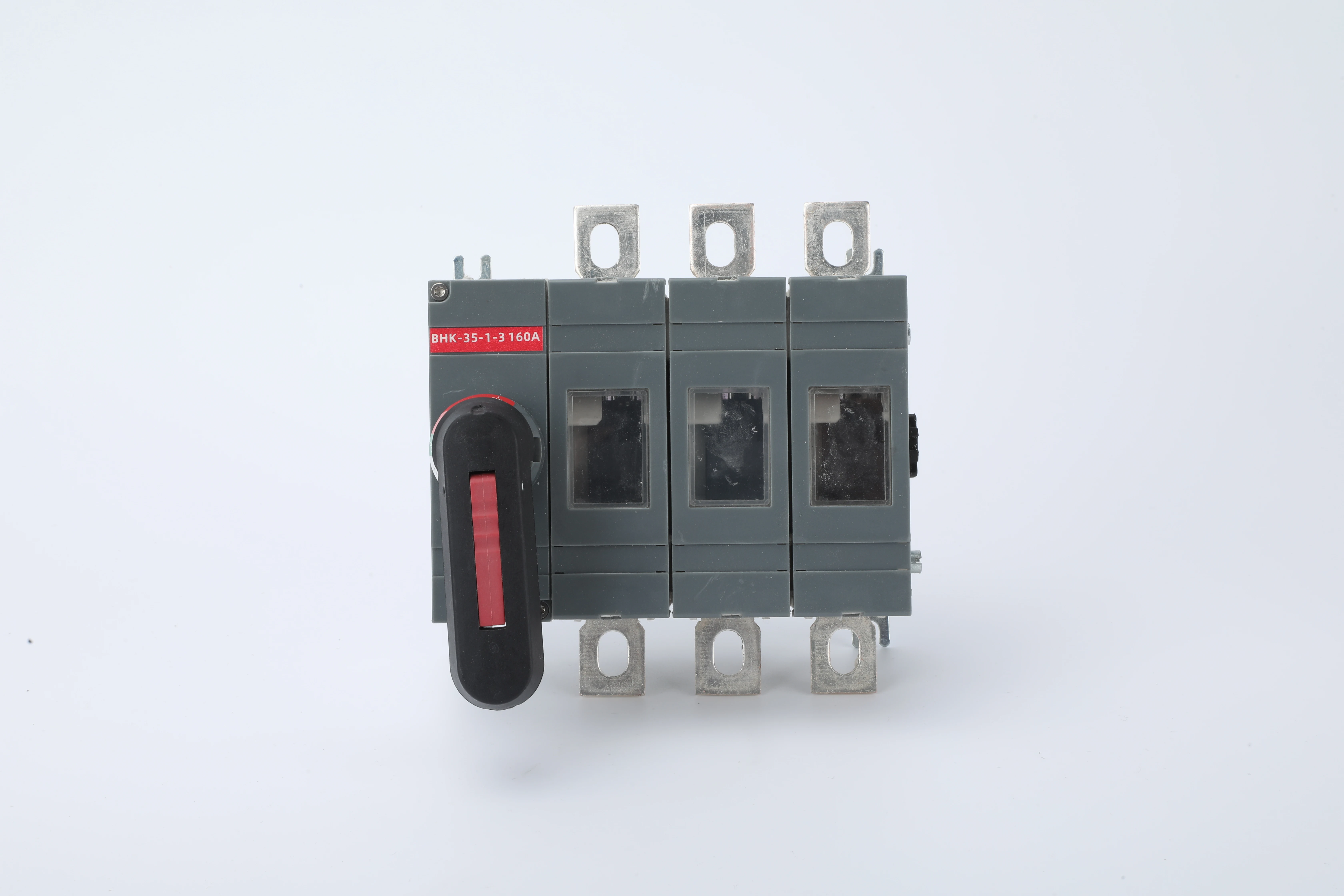

High-Performance DC Isolator For Solar: Safety, Reliability, and Efficiency for Global PV Installations

High-Performance DC Isolator For Solar: Safety, Reliability, and Efficiency for Global PV Installations

Our DC isolator for solar is engineered to meet the rigorous demands of photovoltaic systems worldwide, providing a safe and reliable means of isolating DC circuits during maintenance, emergencies, and system shutdowns. With over 34 years of expertise in low-voltage electrical components, ZHNYU ELECTRIC combines advanced manufacturing precision with robust design to deliver a product that ensures enhanced operational safety and long-term durability. Each unit is built with high-grade, UV-resistant materials and silver-alloy contacts, capable of withstanding extreme temperatures and harsh environmental conditions.
Get A Quote

Case Study

Enhancing Safety in a 5 MW Solar Farm in Spain

A Spanish EPC company faced frequent inverter trips and safety concerns during maintenance on a 5 MW ground-mounted solar farm. They needed a reliable DC isolator that could handle high voltage and provide clear visual indication of disconnection. We supplied 120 units of our DC isolator for solar, rated at 1500V DC and 32A, fitted with IP66 enclosures to withstand dust and water ingress. The isolators were installed in combiner boxes and at inverter inputs, enabling quick and safe isolation during routine checks. Within six months, the client reported a 40% reduction in maintenance time and zero arc faults, thanks to the rapid arc extinguishing design.

Optimizing Rooftop Commercial System in Germany

A German solar installer specialized in commercial rooftop systems required a compact and reliable DC isolator for a 500 kW installation across a logistics center. They prioritized product safety and ease of installation. We provided 300 units of our DC isolator for solar with a unique rail-mounted design, reducing installation time by 25% compared to previous models. The isolator’s high breaking capacity ensured safe disconnection under load, meeting stringent local electrical codes. Over 18 months of operation, the systems recorded zero failures, and the client praised the clear ON/OFF indication and padlockable handle that enhanced safety.

Reliable Solar DC Isolation for Remote Telecom Towers in Australia

A telecom provider in Australia operates remote solar-powered towers across the outback, where extreme heat and fire risk are major concerns. They needed DC isolators that could withstand harsh conditions and provide fail-safe isolation to protect equipment and personnel. We supplied 50 customized DC isolator for solar units with UV-stabilized plastic and a wide operating temperature range of -40°C to 85°C. The isolators were integrated into each tower’s solar array, allowing remote monitoring and safe disconnection during bushfire alerts. Over two years of deployment, the equipment withstood cyclone-force winds and temperatures above 50°C without any degradation. The client noted a 20% improvement in system reliability and reduced insurance premiums due to enhanced safety.

Related products

ZYQ1 Automatic transfer switch VIEW DETAILS

ZYQ1 Automatic transfer switch

Terminal-Type Intelligent Automatic Transfer Switch VIEW DETAILS

Terminal-Type Intelligent Automatic Transfer Switch

HGLR Load isolation switch VIEW DETAILS

HGLR Load isolation switch

HR6 Fuse Switch Disconnectors VIEW DETAILS

HR6 Fuse Switch Disconnectors

At ZHNYU ELECTRIC, our commitment to delivering the world’s most reliable DC isolator for solar is rooted in over three decades of specialization in low-voltage electrical components. Our manufacturing facility, spanning more than 10,000 square meters, is equipped with 100 advanced production machines, enabling us to produce over 2 million units annually with exceptional precision. Every DC isolator for solar undergoes a rigorous quality control process that includes 100% dielectric testing, mechanical endurance testing to 10,000 cycles, and thermal imaging to ensure contact integrity.

Frequently Asked Questions

Why is a DC isolator essential for solar PV systems?

A DC isolator is critical for safely disconnecting solar panels from the inverter and other components during maintenance, emergency shutdowns, or fault conditions. Solar panels generate high DC voltage under sunlight, which cannot be easily extinguished by standard AC switches. Our DC isolator for solar is specifically designed to break DC currents without creating a sustained arc, preventing electrical fires and protecting personnel.
Unlike AC currents that naturally cross zero, DC currents maintain a constant level, making arcing more severe. DC isolators for solar have larger contact gaps, specialized arc chutes, and are tested for DC voltage ratings (e.g., 1500V DC). They also have clear polarity markings and are often rated for breaking capacity under load. AC isolators are not suitable for DC circuits. Always use a DC-rated isolator, such as ours, to ensure safe operation.
The rating depends on your PV system’s maximum voltage and current. Check the open-circuit voltage (Voc) of your panels and the system’s maximum current at the point of isolation. According to IEC standards, the isolator must be rated for at least 1.25 times the array string’s Voc (accounting for temperature) and at least 1.25 times the maximum current. For typical residential systems (up to 1000V DC), a 32A or 40A rated isolator is common. For commercial or utility-scale systems up to 1500V DC, higher ratings are required.
Look for certifications from recognized bodies like IEC (IEC 60947-3), TÜV, or UL. Our DC isolators are CE, CCC, and ISO9001 certified, and we adhere to RoHS standards. Additionally, ensure the isolator has an IC (isolator switch) rating and a positive break indication. For installations in Europe, compliance with EN 60947 is often required. Our products carry the necessary marks, and we provide documentation to support compliance with local regulations.

Related Articles

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

31

Aug

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

View More
The Fuse: The Unsung Hero of Circuit Protection

31

Aug

The Fuse: The Unsung Hero of Circuit Protection

View More
A fuse switch disconnector offers both switching and circuit protection in one device.

12

Sep

A fuse switch disconnector offers both switching and circuit protection in one device.

Need reliable circuit protection AND switching in one device? Fuse switch disconnectors deliver safety, compliance, and space savings. Get expert guidance now.
View More
What is the difference between an isolator switch and a circuit breaker?

12

Sep

What is the difference between an isolator switch and a circuit breaker?

Understand the differences between an isolator switch and a circuit breaker for electrical isolation and overcurrent protection in power systems.
View More

Customer Testimonials

Michael Anderson

We integrated the ZHNYU DC isolator for solar into a 10 MW tracking plant. The product worked flawlessly for over a year with zero failures. The switching action is smooth, and the IP66 enclosure held up well in harsh desert conditions. The after-sales support was responsive, and they provided detailed datasheets that helped with commissioning.

David Müller

As a distributor in Europe, I appreciate the consistent quality of ZHNYU’s DC isolators. The customers often ask for other components, but these isolators stand out due to their clear labeling and robust construction. We saw a 15% cost reduction compared to other brands without any complaints.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
dc isolator dc isolator for solar pv isolator pv array dc isolator dc power isolator pv array dc isolator switch pv isolator switch solar isolator dc solar isolator dc isolator pv pv dc isolator switch dc battery isolator switch dc rotary isolator dc solar isolator switch solar panel dc isolator switch solar pv isolator switch pv array isolator ac isolator in a pv system dc rotary isolator switch

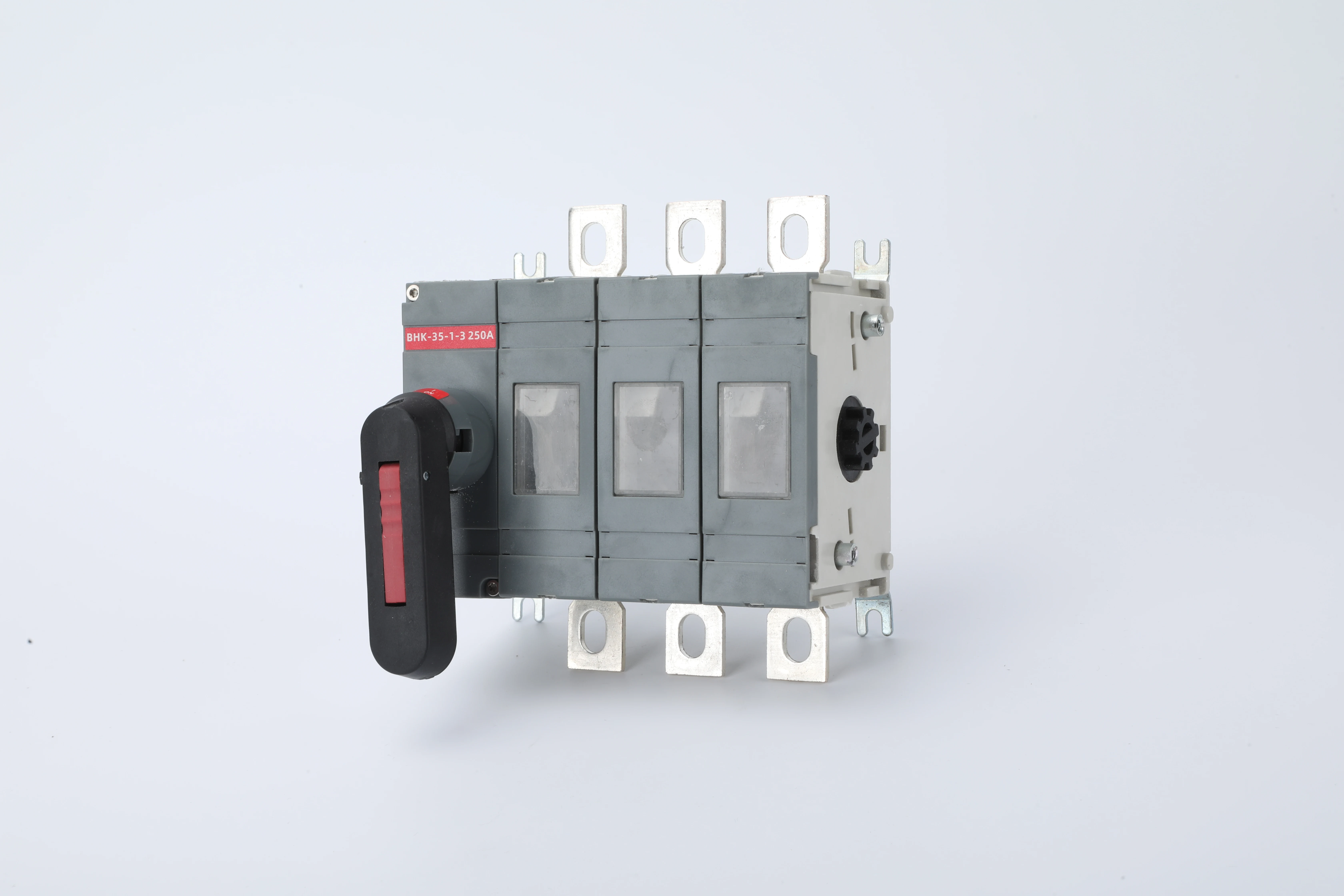

Comprehensive Safety Features Ensure Unmatched Protection

Comprehensive Safety Features Ensure Unmatched Protection

The primary safety highlight of our DC isolator for solar is its positive break mechanism, which visibly separates the contacts and provides a clear indication of disconnection. This feature is further enhanced by a padlockable handle, which locks the switch in the OFF position, preventing accidental re-closure during maintenance—a critical aspect for adhering to lockout/tagout (LOTO) requirements. Internally, the isolator uses a special arc-quenching system with a magnetic blow-out and arc runners that rapidly cool and extinguish arcs, even under high DC currents up to 125A and voltages up to 1500V DC.

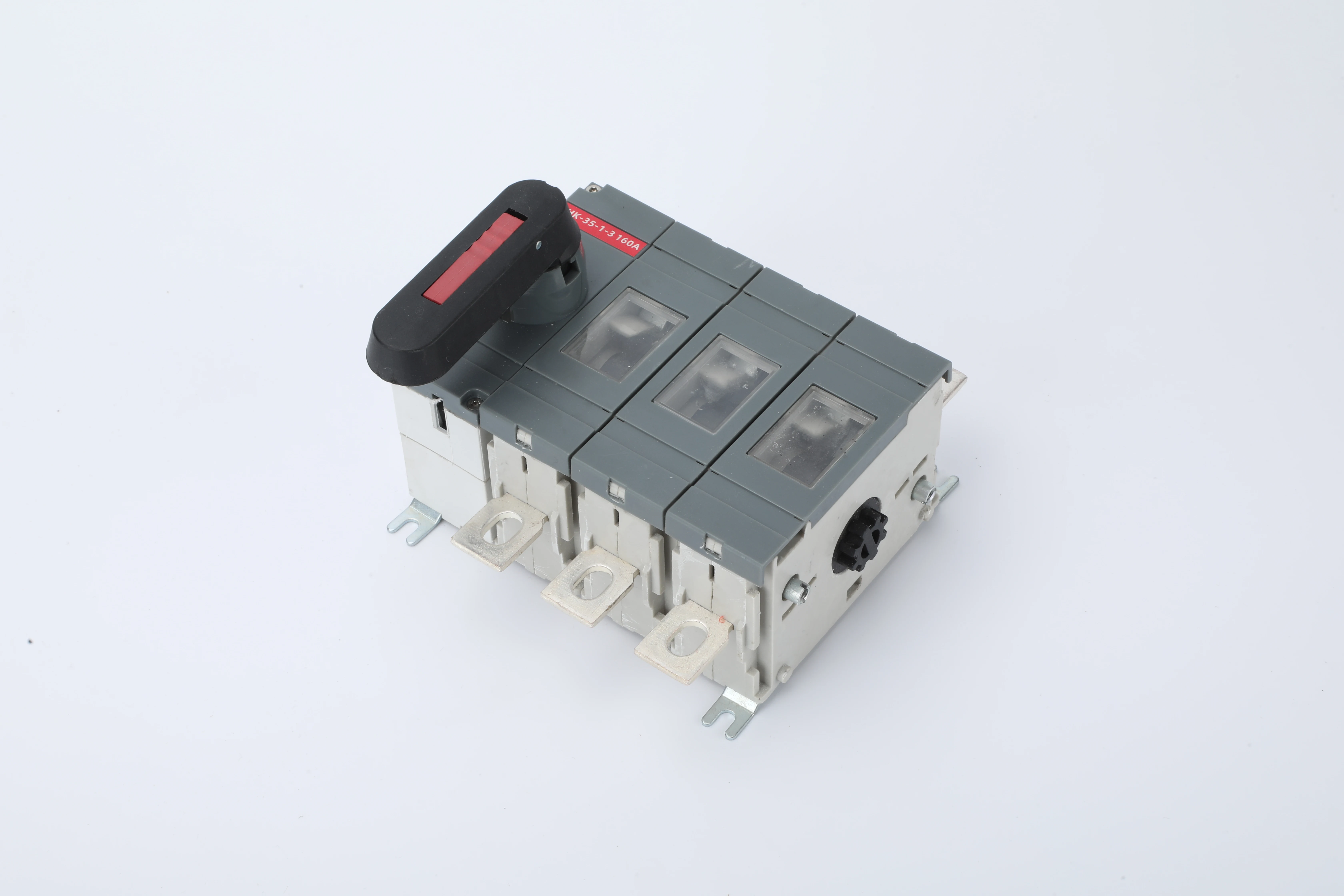

Extreme Weather Resistance for Global Durability

Extreme Weather Resistance for Global Durability

Solar installations are often exposed to the harshest environmental conditions—from scorching deserts to freezing arctic regions. Our DC isolator for solar is engineered to excel in extreme weather. The housing is constructed from a UV-stabilized, halogen-free plastic that resists cracking and discoloration even after years of direct sunlight. It has a high IP66 and IP67 ingress protection rating, meaning it is entirely dust-tight and protected against powerful water jets or brief submersion. This makes it suitable for locations with heavy rain, snow, or salty air near the coast. The isolator is tested to operate reliably across a temperature range of -40°C to +85°C, with a performance margin that exceeds standard requirements.
