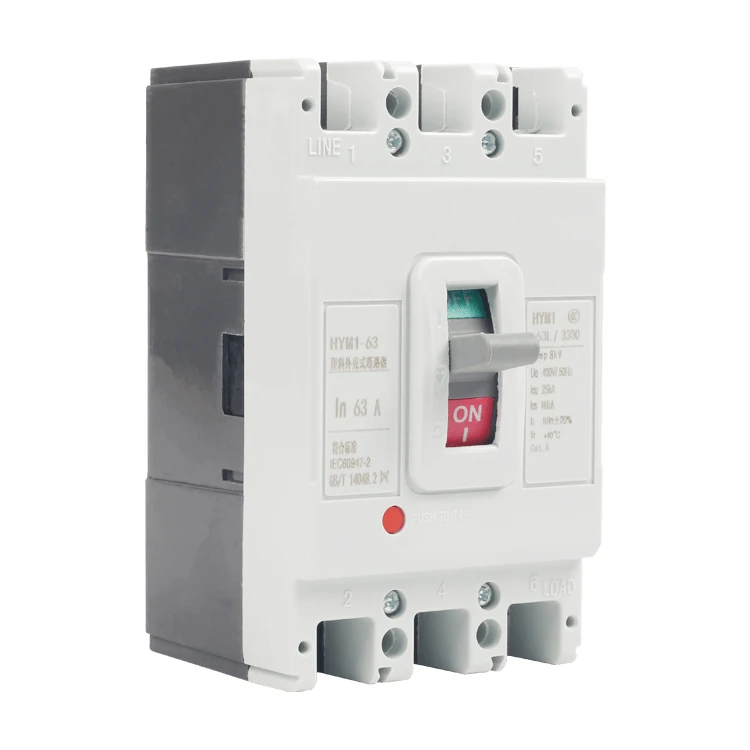

Premium AC MCCB Solutions for Global Power Distribution and Industrial Control

Premium AC MCCB Solutions for Global Power Distribution and Industrial Control

ZHNYU ELECTRIC's AC MCCB (Moulded Case Circuit Breaker) series represents the pinnacle of low-voltage protection, engineered to deliver unmatched safety and reliability in alternating current systems. With over 34 years of production expertise and 100+ advanced manufacturing equipment, we have refined our AC MCCB to meet the rigorous demands of power distribution networks, industrial control panels, and renewable energy installations. Each unit is designed with a breaking capacity up to 100kA and current ratings ranging from 16A to 800A, ensuring robust performance in critical applications across power, construction, photovoltaic, petroleum, chemical, metallurgical, and railway sectors.
Get A Quote

Case Study

Solar Power Plant Protection – Spain

In the Andalusian region, a 50MW solar power plant faced frequent nuisance tripping and equipment damage due to unstable grid conditions. ZHNYU supplied 800A AC MCCBs with electronic trip units set for selective coordination. Over six months, the plant reported zero unscheduled downtime, a 30% reduction in maintenance costs, and enhanced protection for inverters. The breakers’ compact design allowed retrofitting into existing enclosures without structural modifications, minimizing installation time by 20%.

Petrochemical Facility – United Arab Emirates

A petrochemical complex in the UAE required reliable MCCBs for hazardous environments. Our AC MCCBs, featuring arc extinguishing technology and high breaking capacity, were installed in motor control centers (MCCs). Within a year, they successfully cleared multiple short-circuit faults without damaging downstream equipment. The client praised the breakers’ thermal stability under extreme heat, which reduced process stoppages by 18% and contributed to substantial savings in unscheduled repairs, as reported by the maintenance director.

Modular Construction Site – Germany

A German modular building company integrated ZHNYU AC MCCBs into their smart distribution boards for residential complexes. The demand for rapid installation and remote monitoring led to the use of our breakers with communication-ready trip units. The project achieved a 35% faster wiring process and enabled real-time load monitoring via building management systems, enhancing occupant safety and energy efficiency. Feedback highlighted a 99.9% operational accuracy, solidifying our reputation as a construction industry partner.

Related products

ZYQ2 Automatic transfer switch VIEW DETAILS

ZYQ2 Automatic transfer switch

ATS Dual Power Supply Automatic Switch VIEW DETAILS

ATS Dual Power Supply Automatic Switch

HGLR Load isolation switch VIEW DETAILS

HGLR Load isolation switch

HR18 Fuse Switch Disconnectors VIEW DETAILS

HR18 Fuse Switch Disconnectors

ZHNYU ELECTRIC, established in 1992, has evolved into a leading manufacturer of low-voltage electrical components, with a strong focus on the AC MCCB segment. Our production facility, spanning over 10,000 square meters and equipped with 100+ specialized machines, operates on lean principles to ensure every AC MCCB meets international standards. From precision stamping of contacts to meticulous assembly of trip units, each stage is monitored via automated testing systems that verify parameters such as contact resistance, timing, and dielectric strength.

Frequently Asked Questions

Can AC MCCBs be used for DC applications?

No, AC MCCBs are specifically designed for alternating current. Direct current applications require different arc extinguishing methods, as DC arcs are harder to interrupt. At ZHNYU, we offer dedicated DC MCCBs, but for AC systems, our breakers ensure optimal performance and safety.
Our AC MCCBs meet international standards including ISO9001, CE, and CCC, and we adhere to RoHS directives. They are also tested according to IEC 60947-2, ensuring they meet requirements for industrial low-voltage switchgear.
The thermal-magnetic trip provides dual protection. The thermal element (bimetal) trips under overload conditions with a time delay, allowing temporary inrush. The magnetic element responds instantaneously to short circuits, using a solenoid to open the contacts. This combined approach protects both conductors and equipment from dangerous currents.
An AC MCCB, or Moulded Case Circuit Breaker, is designed for alternating current circuits, providing protection against overloads and short circuits.

Related Articles

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

31

Aug

What is an Isolating Switch? A Key Component for Electrical Safety and System Stability

View More
Why do photovoltaic systems commonly use fuse switch disconnectors?

05

Sep

Why do photovoltaic systems commonly use fuse switch disconnectors?

Discover why photovoltaic systems utilize fuse switch disconnectors for essential PV system protection and safe solar DC isolation, backed by CWPACKAGE.
View More
What is the difference between an isolator switch and a circuit breaker?

12

Sep

What is the difference between an isolator switch and a circuit breaker?

Understand the differences between an isolator switch and a circuit breaker for electrical isolation and overcurrent protection in power systems.
View More
Why is a load break switch essential for transformer protection?

12

Sep

Why is a load break switch essential for transformer protection?

A load break switch ensures transformer protection and medium voltage switching, delivering essential electrical safety for power distribution networks.
View More

Customer Testimonials

Michael Smith
Outstanding Reliability in harsh industrial environments

We equipped our steel plant with ZHNYU AC MCCBs, and they have performed flawlessly under high temperature and vibration. The breakers’ never failed, reducing unplanned outages significantly.

Sophia Chen
Excellent Value for Solar Installation

As an EPC contractor in the photovoltaic sector, we require dependable components. ZHNYU’s AC MCCBs offered the best balance of price and performance. Installation was easy, and the breakers effectively protected our PV inverters during grid faults.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile/WhatsApp
Name
Company Name
Message
0/1000
mccb circuit breaker mccb 3phase ac mccb

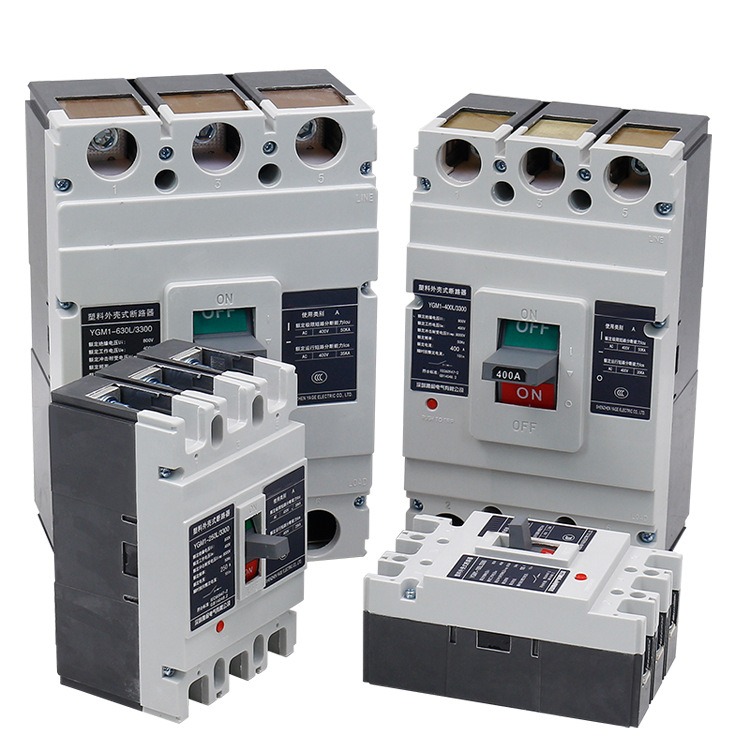

Advanced Arc Quenching Technology Enhances Safety

Advanced Arc Quenching Technology Enhances Safety

At the heart of our AC MCCB is an advanced arc quenching system that rapidly extinguishes arcs during fault conditions, minimizing contact erosion and internal heat rise. This innovation, tested in our in-house labs, increases electrical endurance by over 30% compared to conventional designs. When a short circuit occurs, the arc is split and cooled within microseconds, leading to superior fault interruption up to 100kA. For example, in a chemical plant in the USA, our MCCBs successfully contained a 50kA fault without collateral damage, saving thousands in repairs. This technology not only protects equipment but also ensures operator safety, reducing the risk of arc flash incidents.

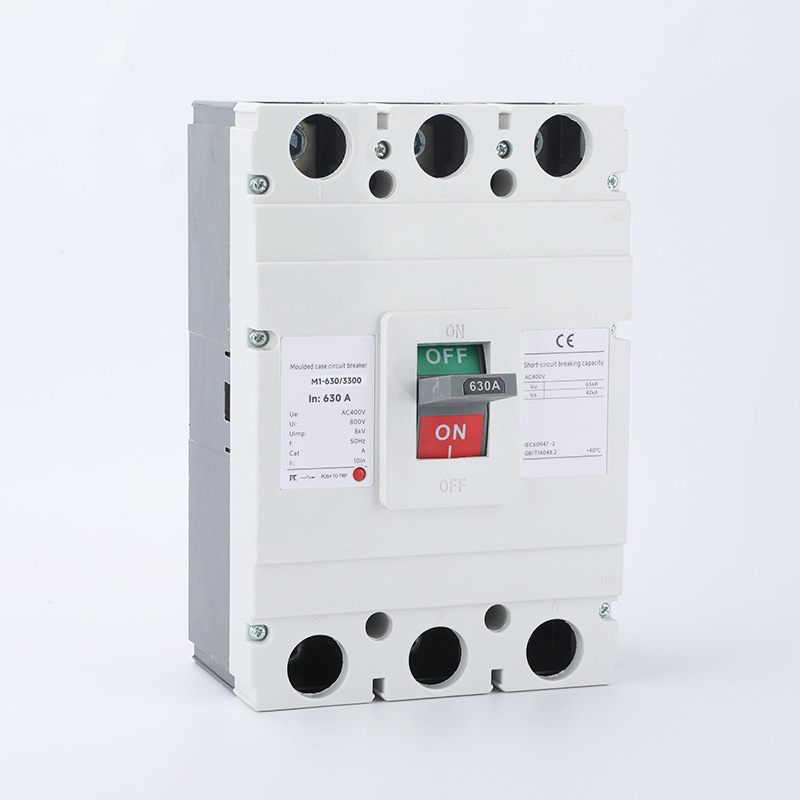

Smart Monitoring and Communication Integration

Smart Monitoring and Communication Integration

Our AC MCCBs can be equipped with intelligent trip units featuring Modbus communication, enabling real-time data monitoring of current, voltage, and power consumption. This digital capability supports predictive maintenance, as data can alert operators to potential overloads before they cause unscheduled shutdowns. In a recent installation at a commercial building in Sydney, our smart MCCBs connected to a BMS reduced energy waste by 15% and allowed remote troubleshooting, cutting response time by 40%. For industries focusing on Industry 4.0, this integration is a cost-effective leap towards smarter electrical systems.
