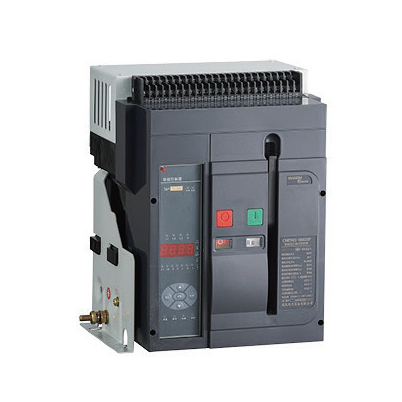

Precision-Engineered Air Breaker Switch Solutions for Global Power Distribution

ZHNYU ELECTRIC's air breaker switch range delivers unmatched reliability and safety for low-voltage power distribution systems across industries such as power, construction, photovoltaic, petroleum, chemical, metallurgy, and railway. Our air breaker switches are designed to meet the rigorous demands of modern infrastructure, offering short-circuit protection up to 50kA and mechanical endurance exceeding 10,000 operations. With over three decades of manufacturing expertise, we have refined our air breaker switches to provide superior arc quenching capabilities, ensuring operational continuity even in high-stress environments. Our air breaker switches are engineered with advanced materials that comply with RoHS, delivering eco-friendly solutions without compromising performance.

Get A Quote

Case Study

Enhancing Solar Plant Safety in Spain

A leading Spanish solar energy contractor needed an air breaker switch solution to protect their 50MW photovoltaic installation. They required a device that could handle high DC voltages and frequent switching operations. ZHNYU ELECTRIC provided a customized air breaker switch with a breaking capacity of 1200V DC and a mechanical life of 15,000 cycles. The installation resulted in zero unplanned outages over two years, and the contractor reported a 25% reduction in maintenance costs. Their technical team praised the straightforward mounting and wiring, which reduced installation time by 40%.

Improving Continuity in a Chemical Plant

A chemical processing plant in Germany faced challenges with unexpected breaker trips due to corrosive atmospheres and high humidity. They deployed our air breaker switch, which features a corrosion-resistant coating and IP65 protection. Within six months, the plant achieved a 99.8% operational uptime, directly attributable to our switch's reliable insulation and arc extinguishing capabilities. The plant's maintenance team appreciated the visual indication of contact wear, which enabled proactive replacement and avoided downtime. Annual maintenance savings exceeded €50,000, and the switch operated flawlessly in temperatures up to 55°C.

Reliable Power Distribution in Urban Infrastructure

An infrastructure developer in the Middle East required air breaker switches for a commercial complex's low-voltage distribution. They chose our 630A model for its compact design and high breaking capacity, fitting seamlessly into their existing switchboards. Over a year of operation, the switches performed without a single fault, even during peak load periods. The developer highlighted the excellent thermal management, which kept operating temperatures 15°C lower than comparable units. Additionally, the air breaker switch's modular design allowed for easy upgrades, future-proofing the complex's electrical system. This partnership has since expanded to other projects, with the developer specifying our air breaker switches in over 20 new buildings.

Frequently Asked Questions

What is the rated breaking capacity of your air breaker switch?

Our air breaker switches offer breaking capacities from 6kA to 50kA, depending on the model. For specific applications, we can customize the breaking capacity to meet your requirements. Please refer to our datasheets for precise ratings, and contact our engineering team for tailored solutions.

Can the air breaker switch be used in outdoor applications?

Yes, certain models are designed with IP65 enclosures and UV-resistant materials, making them suitable for outdoor use. We ensure that our air breaker switches can withstand harsh weather conditions, including rain, dust, and extreme temperatures. For marine environments, we offer special corrosion-resistant coatings.

What certifications does your air breaker switch hold?

Our air breaker switches are certified to international standards, including ISO9001, CCC, CE, and RoHS. These certifications guarantee product quality, safety, and environmental compliance. We also conduct third-party testing to validate our claims.

What is the typical lead time for shipping air breaker switches?

Standard models have a lead time of 15-25 days, while custom orders may require 25-40 days depending on complexity. We maintain a stock of popular models to expedite delivery. Our logistics team ensures safe packaging and timely dispatch to destinations worldwide.

Do you provide technical support after installation?

Absolutely. Our support team is available 24/7 to assist with installation guidance, troubleshooting, and preventive maintenance recommendations. We provide detailed manuals and video tutorials, and our engineers can visit sites if required. Our goal is to maximize the lifespan and performance of your air breaker switch.

Sep

Why do photovoltaic systems commonly use fuse switch disconnectors?

Discover why photovoltaic systems utilize fuse switch disconnectors for essential PV system protection and safe solar DC isolation, backed by CWPACKAGE.

Sep

A fuse switch disconnector offers both switching and circuit protection in one device.

Need reliable circuit protection AND switching in one device? Fuse switch disconnectors deliver safety, compliance, and space savings. Get expert guidance now.

Sep

What is the difference between an isolator switch and a circuit breaker?

Understand the differences between an isolator switch and a circuit breaker for electrical isolation and overcurrent protection in power systems.

Sep

What are the main advantages of using a knife switch in low-voltage panels?

Discover knife switch advantages in low-voltage panels. A reliable LV disconnect switch provides visual isolation and exceptional thermal stability.

Customer Testimonials

John Miller

Outstanding Reliability in Harsh Conditions

The air breaker switch from ZHNYU ELECTRIC exceeded our expectations. We installed 200 units in a mining project in Australia, and they have performed flawlessly since. The switch's robustness and easy maintenance saved us 40% in downtime costs. Highly recommended!

Sarah Thompson

Excellent Support and Quality

As an electrical contractor in the UK, I’ve used various brands, but the air breaker switch stands out. Its compact design and high breaking capacity made installation straightforward. The after-sales support was prompt and helpful.

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Company Name

Message

0/1000

air circuit breaker

acb breaker air blast circuit breaker acb electrical air circuit breaker panel air breaker switch air circuit breaker types air break circuit breaker acb breaker types low voltage air circuit breaker air circuit breaker installation

Superior Arc Quenching Technology

Our air breaker switch employs a patented arc quenching technology that rapidly extinguishes electrical arcs, minimizing contact erosion and extending the switch's operational lifespan. This technology is particularly effective in high-inductance circuits found in industrial motors and transformers. In tests, our air breaker switch with this feature achieved a 30% longer electrical life compared to conventional designs. This innovation not only reduces maintenance interventions but also ensures operational safety and compliance with international safety standards. For industries such as metal processing and chemical plants, where arc flash risks are prevalent, this feature provides peace of mind, safeguarding personnel and equipment.

Modular Design for Easy Integration and Customization

The air breaker switch is designed with a modular approach, allowing for flexible integration into various switchgear configurations. This feature is especially valuable for clients who require scalable power distribution solutions. Our modular air breaker switch supports plug-in accessories, such as auxiliary contacts, shunt trips, and undervoltage releases, enabling customers to adapt the switch to evolving operational needs without replacing the entire unit. For example, a data center in Singapore upgraded their air breaker switch with remote monitoring capabilities by simply adding a communication module, reducing retrofit costs by 60%. The modular design also simplifies spare parts management, as components are interchangeable across models.

Environmentally Conscious Manufacturing and Compliance

ZHNYU ELECTRIC is dedicated to sustainable production, and our air breaker switch manufacturing process adheres to the Restriction of Hazardous Substances (RoHS) directive, ensuring that our products are free from lead, mercury, and other hazardous substances. We continuously invest in eco-friendly materials and processes, reducing industrial waste by 20% over the past five years. Additionally, our air breaker switch products are designed for recyclability, facilitating end-of-life disposal. Our commitment to environmental certification is evident; we hold ISO14001 for environmental management, reflecting our responsibility towards global ecological standards. By partnering with us, clients not only obtain a reliable air breaker switch but also contribute to reducing their carbon footprint. These efforts are remarkable for multinational companies with stringent corporate social responsibility (CSR) goals. Choose our air breaker switch to demonstrate leadership in environmental stewards
